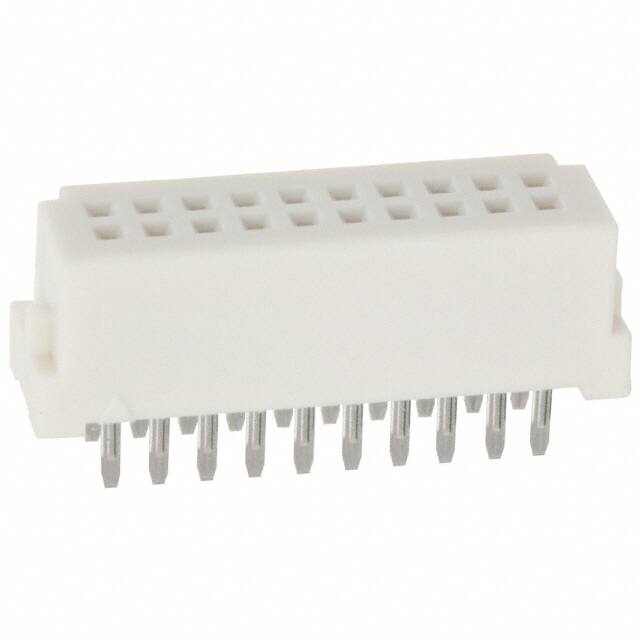

DF13-20DS-1.25C

Teknik Özellikler

Operating Temperature Min

-35°C

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Connector Type

Receptacle

Rated Current Signal

1A

Filter Feature

NO

Kurşunsuz Kodu

yes

Parça Durumu

Active

Montaj Tipi

Free Hanging (In-Line)

Body Length Or Diameter

0.656 inch

Number Of Conductors

ONE

Number Of Contacts

20

Mil Conformance

NO

Durability

30 Cycles

Iec Conformance

NO

Lead Pitch

1.25mm

Mixed Contacts

NO

Contact Finish Mating

NOT SPECIFIED

Reliability

COMMERCIAL

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

Contact Type

Female Socket

Mounting Option1

LOCKING

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

NOT SPECIFIED

Row Spacing

0.049 (1.25mm)

Sıra Sayısı

2

Operating Temperature Max

85°C

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

RoHS Durumu

RoHS Compliant

Contact Termination

Crimp

Ul Flammability Code

94V-0

Note

Contacts Not Included

Withdrawl Forcemin

0.3 N

Reference Standard

UL

Kurşunsuz

Lead Free
