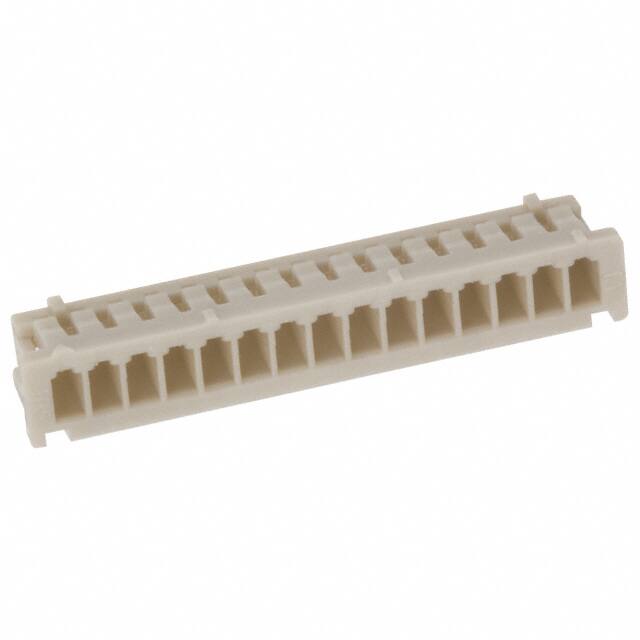

DF13-15S-1.25C

Teknik Özellikler

Reliability

COMMERCIAL

Contact Finish Mating

TIN/GOLD

Mixed Contacts

NO

Lead Pitch

1.25mm

Iec Conformance

NO

Durability

30 Cycles

Mil Conformance

NO

Number Of Contacts

15

Body Length Or Diameter

0.803 inch

Number Of Conductors

ONE

Montaj Tipi

Free Hanging (In-Line)

Parça Durumu

Active

Kurşunsuz Kodu

yes

Filter Feature

NO

Rated Current Signal

1A

Connector Type

Receptacle

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-35°C

Orientation

Straight

Option

GENERAL PURPOSE

Insertion Forcemax

3 N

Seri

DF13

Ambalaj

Bulk

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Withdrawl Forcemin

0.3 N

Reference Standard

UL

Note

Contacts Not Included

Contact Termination

Crimp

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

Operating Temperature Max

85°C

JESD-609 Kodu

e3/e4

Sıra Sayısı

1

Contact Materials

PHOSPHOR COPPER
