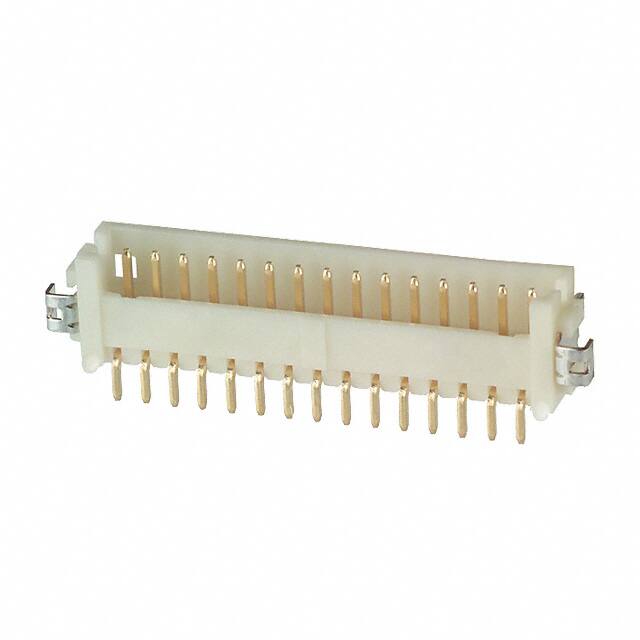

DF13-15P-1.25DSA

Teknik Özellikler

Contact Type

Male Pin

Yükseklik

4.3mm

Renk

Black

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e3

ECCN Kodu

EAR99

Pozisyon Sayısı

15

Uzunluk

20.4mm

Fastening Type

Detent Lock

Contact Gender

Male

Ambalaj

Bulk

Seri

DF13

Orientation

Straight

Contact Finish Thickness Mating

39.4μin 1.00μm

Insertion Forcemax

3.0024 N

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Contact Shape

Square

Insulation Color

Beige

Mil Conformance

NO

Style

Board to Cable/Wire

Number Of Conductors

ONE

Montaj Tipi

Through Hole

Mating Contact Pitch

0.049 inch

Durability

50 Cycles

Lead Pitch

1.25mm

Reliability

COMMERCIAL

Mixed Contacts

NO

Stack Height Mating

5.3mm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

Additional Feature

LOW PROFILE

Ul Flammability Code

94V-0
