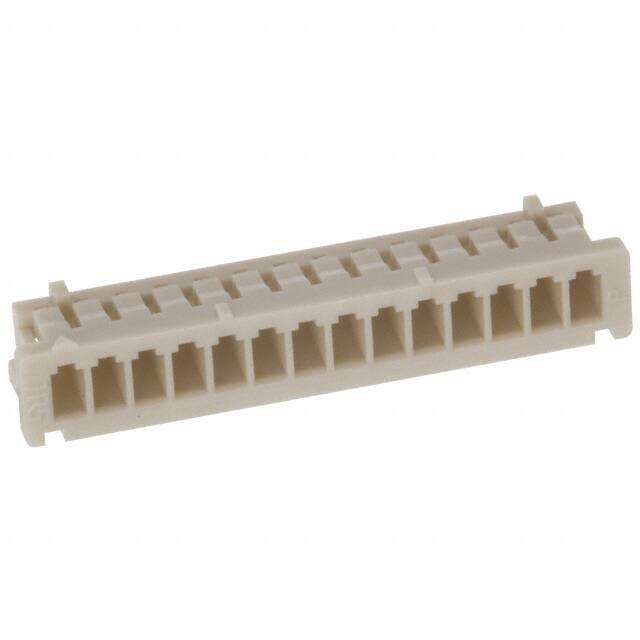

DF13-14S-1.25C

Teknik Özellikler

Montaj Tipi

Free Hanging (In-Line)

Mil Conformance

NO

Number Of Contacts

14

Iec Conformance

NO

Lead Pitch

1.25mm

Mixed Contacts

NO

Reliability

COMMERCIAL

Contact Finish Mating

TIN/GOLD

Operating Temperature Min

-35°C

REACH Uyumluluk Kodu

unknown

Nem Hassasiyeti (MSL)

1 (Unlimited)

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Filter Feature

NO

Rated Current Signal

1A

Connector Type

Receptacle

Parça Durumu

Active

Kurşunsuz Kodu

yes

Reference Standard

UL

Note

Contacts Not Included

Fabrika Tedarik Süresi

12 Weeks

Kurşunsuz

Lead Free

Ambalaj

Bulk

Seri

DF13

Option

GENERAL PURPOSE

Orientation

Straight

Insertion Forcemax

3.0024 N

Mounting Option1

LOCKING

Contact Type

Female Socket

Din Conformance

NO

Pitch

0.049 1.25mm

Renk

Beige

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Materials

PHOSPHOR COPPER

JESD-609 Kodu

e3/e4

Sıra Sayısı

1

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Operating Temperature Max

85°C

RoHS Durumu

RoHS Compliant
