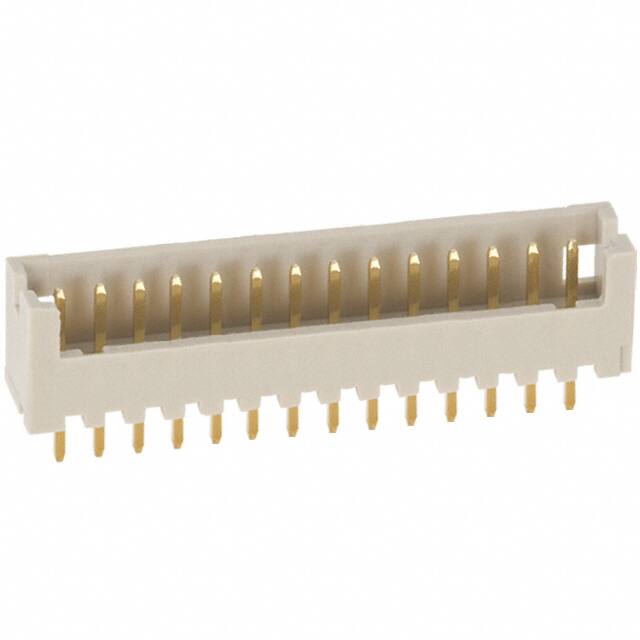

DF13-14P-1.25DS(50)

Teknik Özellikler

Housing Material

Plastic

RoHS Durumu

RoHS Compliant

Contact Type

Male Pin

Contact Materials

Brass

Pozisyon Sayısı

14

Material Flammability Rating

UL94 V-0

Sıra Sayısı

1

Seri

DF13

Montaj

Through Hole

Orientation

Right Angle

Contact Finish Thickness Mating

8.00μin 0.203μm

Nominal Gerilim

150V

Fastening Type

Detent Lock

Gender

Male

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Kurşunsuz

Lead Free

Ambalaj

Tube

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon

Connector Type

Header

Parça Durumu

Active

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.049 1.25mm

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.091 2.30mm

Lead Pitch

1.25mm

Çalışma Sıcaklığı

-35°C~85°C

Insulation Height

0.142 3.60mm

Contact Finish Mating

Gold

Housing Color

Beige

Montaj Tipi

Through Hole, Right Angle

Style

Board to Cable/Wire

Terminal

Solder
