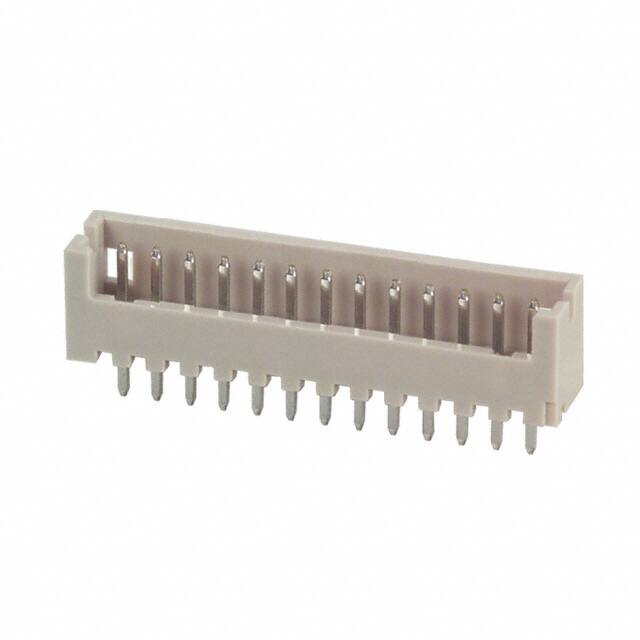

DF13-13P-1.25DSA

Teknik Özellikler

Uzunluk

17.9mm

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

13

Yükseklik

4.3mm

Contact Type

Male Pin

Contact Finish Thickness Mating

39.4μin 1.00μm

Insertion Forcemax

3.0024 N

Seri

DF13

Contact Gender

Male

Ambalaj

Bulk

Fastening Type

Detent Lock

Insulation Materials

Polyamide (PA), Nylon

Filter Feature

NO

Contact Shape

Square

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reliability

COMMERCIAL

Mixed Contacts

NO

Durability

50 Cycles

Style

Board to Cable/Wire

Insulation Color

Beige

Mil Conformance

NO

Mating Contact Pitch

0.049 inch

Montaj Tipi

Through Hole

Number Of Conductors

ONE

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Sıra Sayısı

1

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Brass

Din Conformance

NO

Stack Height Mating

5.3mm

Option

GENERAL PURPOSE

Radyasyon Dayanımı

No

Montaj

Through Hole

Number Of Pcb Rows

1
