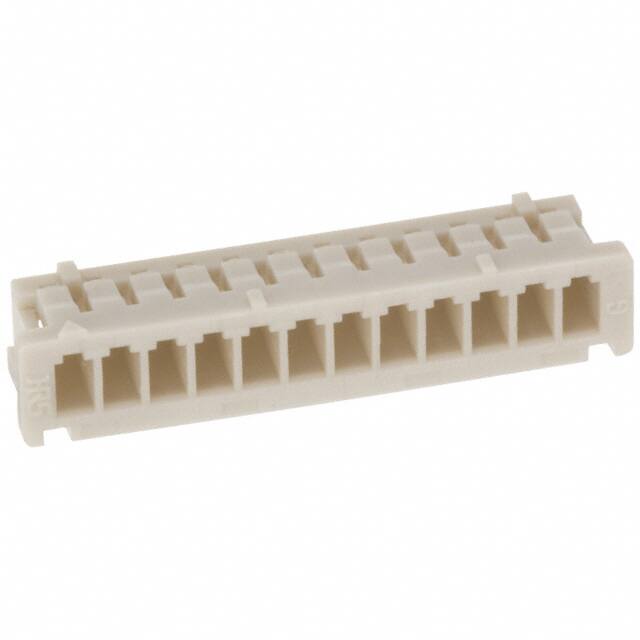

DF13-12S-1.25C

Teknik Özellikler

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

1A

Note

Contacts Not Included

Reference Standard

UL

HTS Kodu

8536.69.40.40

Ambalaj

Bulk

Seri

DF13

Insertion Forcemax

3.0024 N

Orientation

Straight

Option

GENERAL PURPOSE

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

Contact Type

Female Socket

Mounting Option1

LOCKING

Voltage Rated Ac

150V

Sıra Sayısı

1

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Contact Materials

PHOSPHOR BRONZE

Pozisyon Sayısı

12

RoHS Durumu

RoHS Compliant

Operating Temperature Max

85°C

Housing Material

Polyamide

Insulation Resistance

500MOhm

Ul Flammability Code

94V-0

Contact Termination

Crimp

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

NO

Total Number Of Contacts

12

Lead Pitch

1.25mm

Contact Finish Mating

TIN/GOLD

Reliability

COMMERCIAL

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

500VAC V
