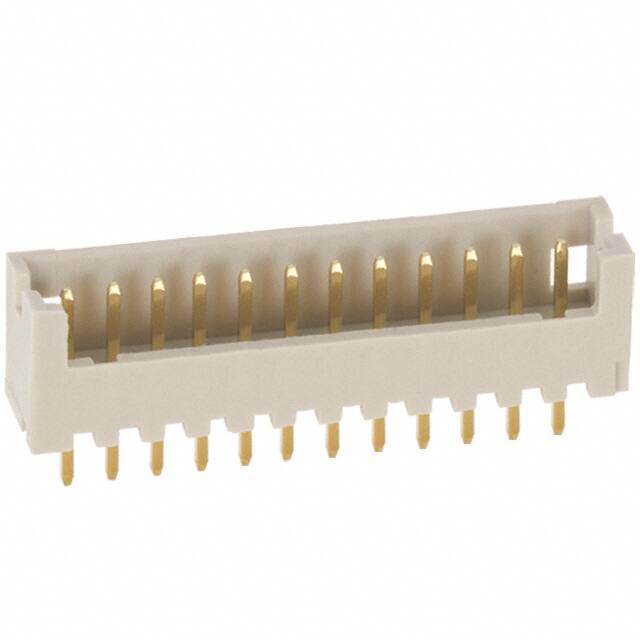

DF13-12P-1.25DS(20)

Teknik Özellikler

Seri

DF13

Insertion Forcemax

3.0024 N

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Gender

Male

Ambalaj

Tube

Contact Type

Male Pin

ECCN Kodu

EAR99

JESD-609 Kodu

e3

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

12

Lead Pitch

1.25mm

Reliability

COMMERCIAL

Mixed Contacts

NO

Style

Board to Cable/Wire

Insulation Color

Beige

Mil Conformance

NO

Mating Contact Pitch

0.049 inch

Montaj Tipi

Through Hole, Right Angle

Number Of Conductors

ONE

Durability

50 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Shape

Square

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

REACH Uyumluluk Kodu

unknown

Number Of Pcb Rows

1

Option

GENERAL PURPOSE

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

10 Weeks

Reference Standard

UL

Nominal Gerilim

150V

HTS Kodu

8536.69.40.40

RoHS Durumu

RoHS Compliant

Additional Feature

LOW PROFILE

Housing Material

Plastic

Insulation Resistance

500000000Ohm

Ul Flammability Code

94V-0

Length Termination

0.09 inch

Din Conformance

NO
