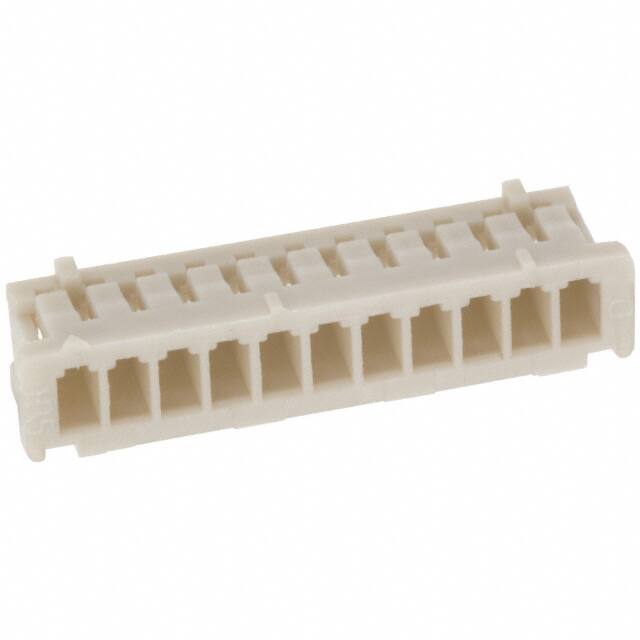

DF13-11S-1.25C

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-35°C

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz Kodu

yes

Parça Durumu

Active

Connector Type

Receptacle

Rated Current Signal

1A

Filter Feature

NO

Number Of Contacts

11

Mil Conformance

NO

Montaj Tipi

Free Hanging (In-Line)

Iec Conformance

NO

Lead Pitch

1.25mm

Contact Finish Mating

TIN/GOLD

Reliability

COMMERCIAL

Mixed Contacts

NO

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Renk

Beige

Pitch

0.049 1.25mm

Din Conformance

NO

Contact Type

Female Socket

Mounting Option1

LOCKING

Sıra Sayısı

1

JESD-609 Kodu

e3/e4

Contact Materials

PHOSPHOR COPPER

RoHS Durumu

RoHS Compliant

Operating Temperature Max

85°C

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Ul Flammability Code

94V-0

Contact Termination

Crimp

Kurşunsuz

Lead Free

Fabrika Tedarik Süresi

10 Weeks

Note

Contacts Not Included

Reference Standard

UL

Ambalaj

Bulk

Seri

DF13

Insertion Forcemax

3.0024 N
