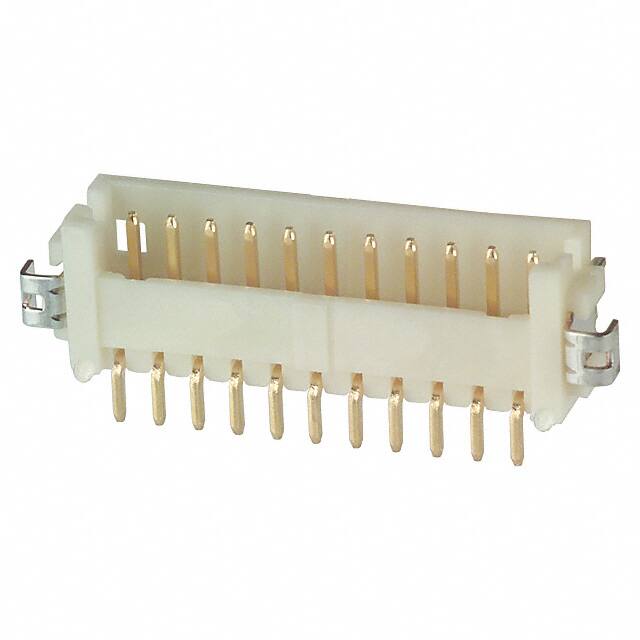

DF13-11P-1.25DS(50)

Teknik Özellikler

Style

Board to Cable/Wire

Montaj Tipi

Through Hole, Right Angle

Terminal

Solder

Lead Pitch

1.25mm

Housing Color

Beige

Contact Finish Mating

Gold

Insulation Height

0.142 3.60mm

Çalışma Sıcaklığı

-35°C~85°C

Shrouding

Shrouded - 4 Wall

Contact Length Post

0.091 2.30mm

REACH Uyumluluk Kodu

unknown

Number Of Positions Loaded

All

Pitch Mating

0.049 1.25mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Parça Durumu

Active

Connector Type

Header

Contact Shape

Square

Insulation Materials

Polyamide (PA), Nylon

Kurşunsuz

Lead Free

Akım Değeri

1A

Fabrika Tedarik Süresi

10 Weeks

Gender

Male

Nominal Gerilim

150V

HTS Kodu

8536.69.40.40

Fastening Type

Detent Lock

Ambalaj

Tube

Montaj

Through Hole

Seri

DF13

Contact Finish Thickness Mating

8.00μin 0.203μm

Orientation

Right Angle

Contact Type

Male Pin

Sıra Sayısı

1

ECCN Kodu

EAR99

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

11

Contact Materials

Brass

RoHS Durumu

RoHS Compliant

Housing Material

Plastic
