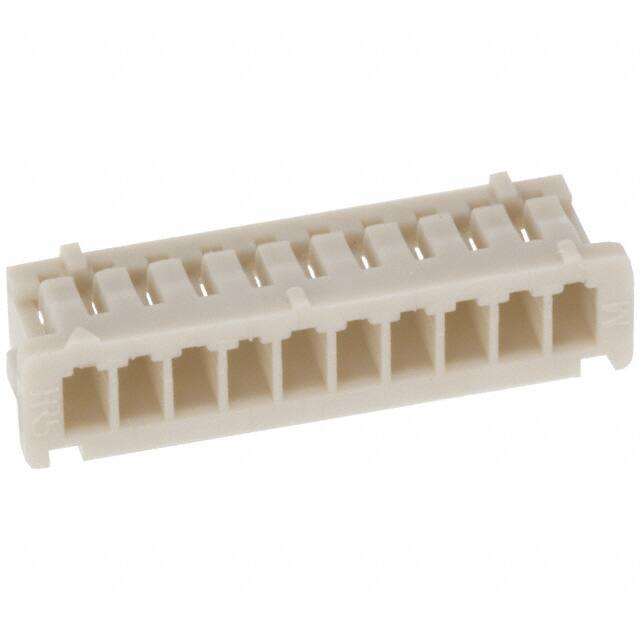

DF13-10S-1.25C

Teknik Özellikler

Parça Durumu

Active

Kurşunsuz Kodu

yes

Filter Feature

NO

Rated Current Signal

1A

Connector Type

Receptacle

Dielectric Withstanding Voltage

500VAC V

Contact Resistance

30mOhm

Nem Hassasiyeti (MSL)

1 (Unlimited)

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-35°C

Reliability

COMMERCIAL

Contact Finish Mating

TIN/GOLD

Mixed Contacts

NO

Lead Pitch

1.25mm

Iec Conformance

NO

Durability

30 Cycles

Mil Conformance

NO

Number Of Contacts

10

Number Of Conductors

ONE

Body Length Or Diameter

0.557 inch

Montaj Tipi

Free Hanging (In-Line)

Ul Flammability Code

94V-0

Contact Termination

Crimp

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Insulation Resistance

500000000Ohm

Operating Temperature Max

85°C

ECCN Kodu

EAR99

JESD-609 Kodu

e3/e4

Sıra Sayısı

1

Contact Materials

PHOSPHOR COPPER

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Contact Type

Female Socket

Mounting Option1

LOCKING

Renk

Beige

Din Conformance

NO

Pitch

0.049 1.25mm

Orientation

Straight

Option

GENERAL PURPOSE

Insertion Forcemax

3 N
