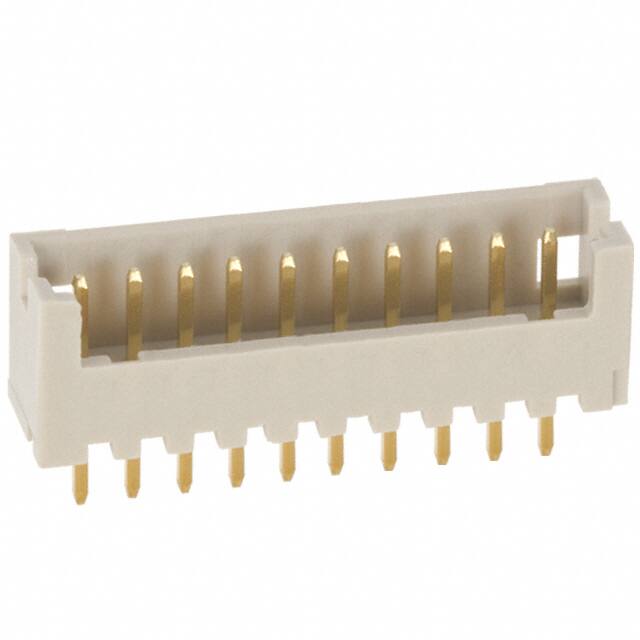

DF13-10P-1.25DS(50)

Teknik Özellikler

Parça Durumu

Active

Filter Feature

NO

Insulation Materials

Polyamide (PA), Nylon

Contact Shape

Square

Connector Type

Header

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Positions Loaded

All

REACH Uyumluluk Kodu

unknown

Contact Length Post

0.091 2.30mm

Pitch Mating

0.049 1.25mm

Shrouding

Shrouded - 4 Wall

Housing Color

Beige

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-35°C~85°C

Mixed Contacts

NO

Insulation Height

0.142 3.60mm

Lead Pitch

1.25mm

Iec Conformance

NO

Terminal

Solder

Mil Conformance

NO

Style

Board to Cable/Wire

Montaj Tipi

Through Hole, Right Angle

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant

Housing Material

Plastic

Material Flammability Rating

UL94 V-0

ECCN Kodu

EAR99

Sıra Sayısı

1

Pozisyon Sayısı

10

Contact Materials

Brass

Contact Type

Male Pin

Din Conformance

NO

Orientation

Right Angle

Option

GENERAL PURPOSE

Contact Finish Thickness Mating

8.00μin 0.203μm

Montaj

Through Hole

Seri

DF13

Ambalaj

Tube

Contact Gender

Male

Akım Değeri

1A
