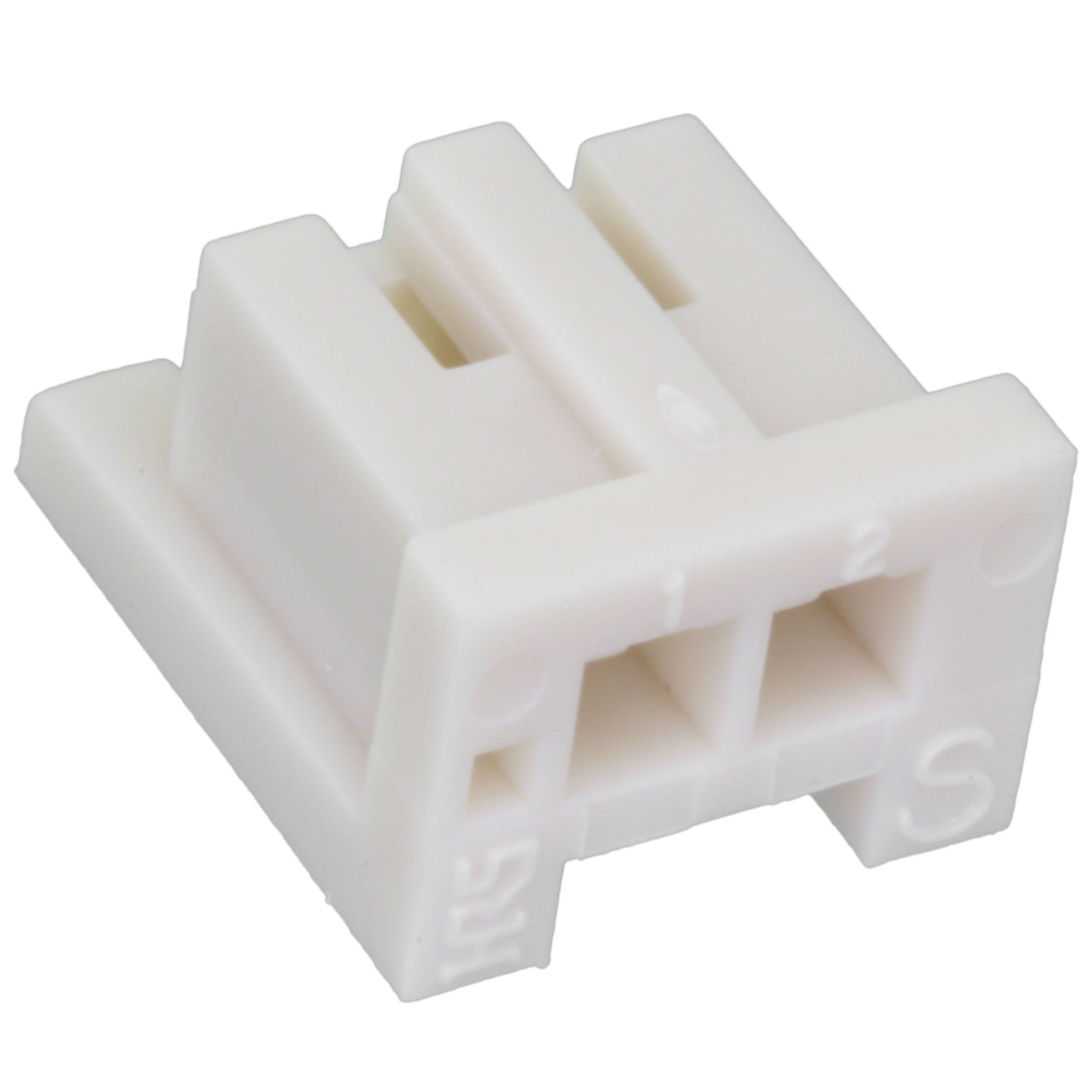

DF1-2S-2.5C

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Rated Current Signal

3A

Insulation Materials

POLYAMIDE

REACH Uyumluluk Kodu

unknown

ECCN Kodu

EAR99

Contact Resistance

30mOhm

Mil Conformance

NO

HTS Kodu

8536.69.40.40

Polarization Key

POLARIZED HOUSING

Contact Materials

PHOSPHOR COPPER

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Mating

TIN

Parça Durumu

Active

Fabrika Tedarik Süresi

10 Weeks

Contact Termination

Crimp

Reference Standard

UL

Contact Type

Female Socket

Note

Contacts Not Included

Contact Gender

Female

Durability

30 Cycles

Mixed Contacts

NO

Pozisyon Sayısı

2

Ambalaj

Bulk

Montaj Tipi

Free Hanging (In-Line)

Mating Information

MULTIPLE MATING PARTS AVAILABLE

JESD-609 Kodu

e3

Withdrawl Forcemin

.556 N

Mounting Option1

LOCKING

Iec Conformance

NO

Ul Flammability Code

94V-0

Kurşunsuz

Lead Free

Operating Temperature Min

-55°C

Reliability

COMMERCIAL

Total Number Of Contacts

2

Filter Feature

NO

Operating Temperature Max

85°C

Seri

DF1

Dielectric Withstanding Voltage

650VAC V

Pitch

0.098 2.50mm

Kurşunsuz Kodu

yes
