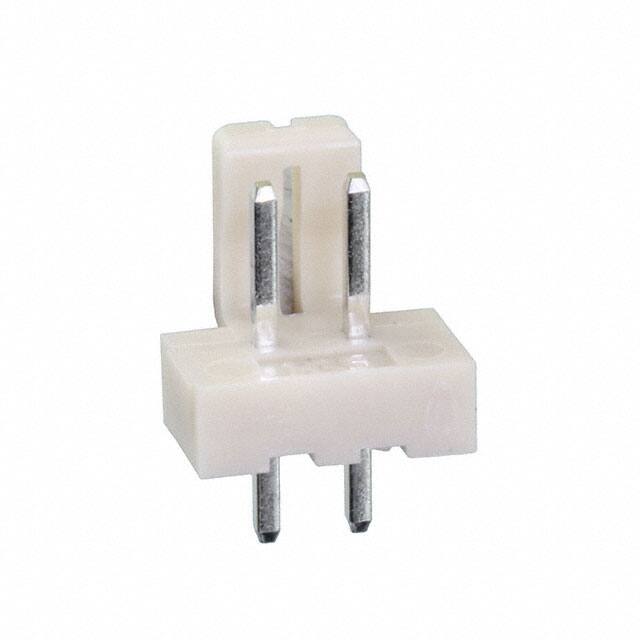

DF1-2P-2.5DSA(05)

Teknik Özellikler

Parça Durumu

Active

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-30°C~85°C

Contact Finish Mating

Tin

Ambalaj

Bulk

Pozisyon Sayısı

2

Mixed Contacts

NO

Durability

30 Cycles

Montaj

Through Hole

Fabrika Tedarik Süresi

10 Weeks

Insulation Materials

Polyamide (PA), Nylon

Style

Board to Cable/Wire

Voltage Rated Ac

250V

Mil Conformance

NO

Shrouding

Shrouded - 1 Wall

Mating Contact Pitch

0.098 inch

Housing Material

Polyamide

Option

GENERAL PURPOSE

Connector Type

Header

Depth

6mm

Din Conformance

NO

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Reliability

COMMERCIAL

Ul Flammability Code

94V-0

Insulation Color

Brown

Orientation

Straight

Montaj Tipi

Through Hole

Uzunluk

7.5mm

Insulation Height

0.295 7.50mm

Max Voltage Rating Ac

250V

Pitch Mating

0.098 2.50mm

Terminal

Solder

Contact Materials

Brass

Pcb Contact Pattern

RECTANGULAR

Polarization Key

POLARIZED HOUSING

Overall Contact Length

0.394 10.00mm

Contact Gender

Male

Contact Type

Male Pin

Reference Standard

UL
