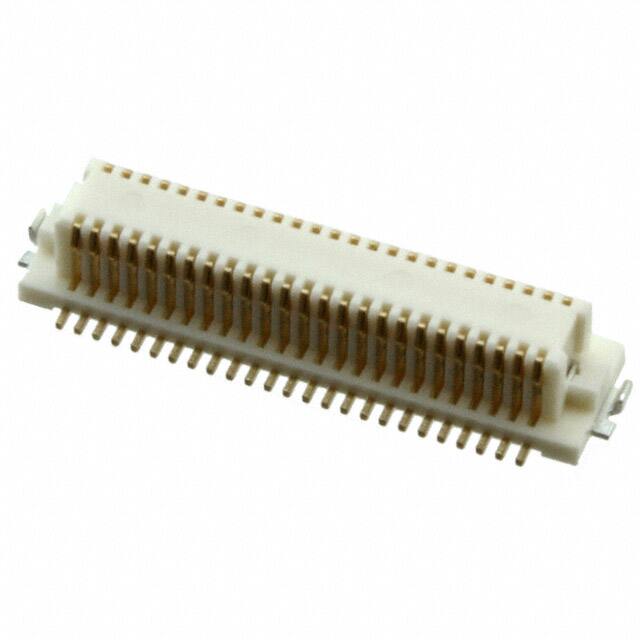

DF12B-50DS-0.5V(86)

Teknik Özellikler

Ul Flammability Code

94V-0

Housing Material

Plastic

Height Above Board

0.106 2.70mm

RoHS Durumu

RoHS Compliant

Contact Materials

Copper

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Stack Height Mating

3.5mm 4mm 5mm

Din Conformance

NO

Pitch

0.020 0.50mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Option

GENERAL PURPOSE

Number Of Pcb Rows

2

Montaj

Surface Mount

Reference Standard

UL

Nominal Gerilim

50V

Fabrika Tedarik Süresi

12 Weeks

Akım Değeri

300mA

Kurşunsuz

Lead Free

Connector Type

Receptacle, Center Strip Contacts

Parça Durumu

Active

Kurşunsuz Kodu

yes

Housing Color

Beige

Total Number Of Contacts

50

Iec Conformance

NO

Terminal

SMD/SMT

Contact Finish

Gold

Özellikler

Solder Retention

Contact Finish Thickness

8.00μin 0.203μm

Pozisyon Sayısı

50

JESD-609 Kodu

e4

Pcb Contact Row Spacing

3.6068 mm

Orientation

Straight

Seri

DF12

Stack Height

5mm

Ambalaj

Tape & Reel (TR)

Contact Pattern

RECTANGULAR

Reach Svhc

Unknown

Gender

Receptacle

Filter Feature

NO
