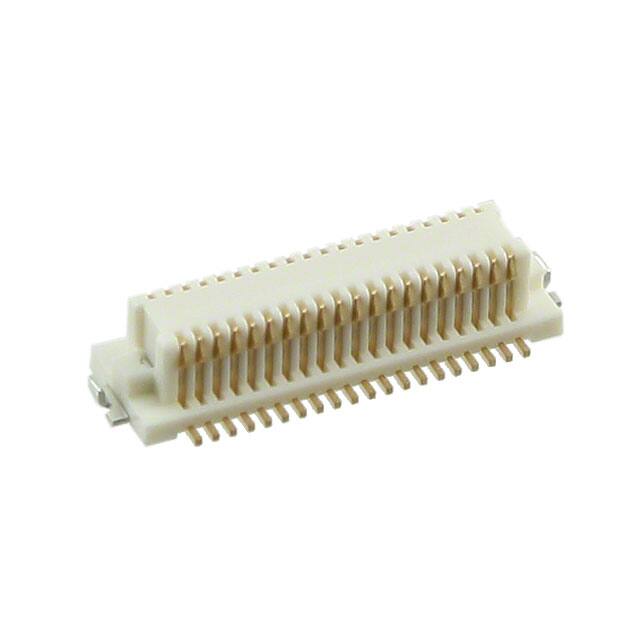

DF12B-40DS-0.5V(86)

Teknik Özellikler

Uzunluk

13mm

Özellikler

Solder Retention

ECCN Kodu

EAR99

JESD-609 Kodu

e4

Pcb Contact Row Spacing

3.6068 mm

Pozisyon Sayısı

40

Contact Finish Thickness

8.00μin 0.203μm

Seri

DF12

Orientation

Straight

Gender

Female

Min. Çalışma Sıcaklığı

-45°C

Contact Pattern

RECTANGULAR

Ambalaj

Cut Tape (CT)

Stack Height

5mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Filter Feature

NO

Maks. Çalışma Sıcaklığı

125°C

Rated Current Signal

0.3A

Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Lead Pitch

500μm

Reliability

COMMERCIAL

Mixed Contacts

NO

Mil Conformance

NO

Number Of Conductors

ONE

Montaj Tipi

Surface Mount

Durability

50 Cycles

RoHS Durumu

RoHS Compliant

Insulation Resistance

500000000Ohm

Housing Material

Polyamide

Height Above Board

0.106 2.70mm

Ul Flammability Code

94V-0

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

3.5mm 4mm 5mm

Pitch

0.020 0.50mm

Din Conformance

NO

Pcb Contact Pattern

RECTANGULAR

Sıra Sayısı

2

Contact Materials

Copper

Montaj

Surface Mount
