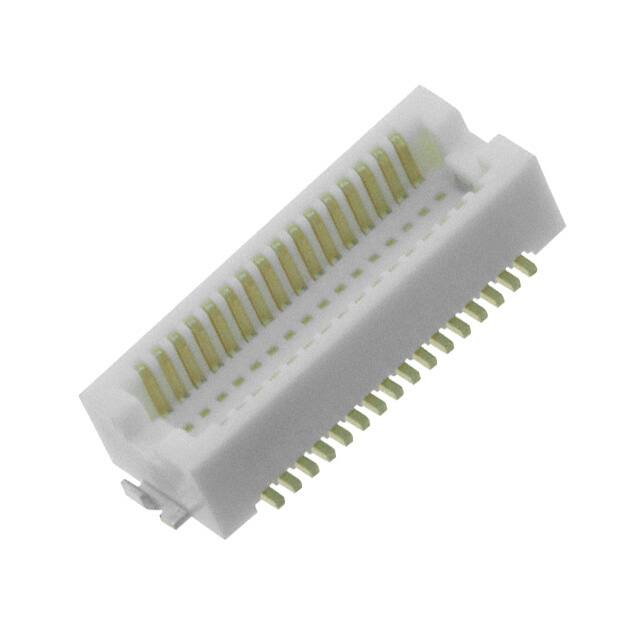

DF12B(3.0)-40DS-0.5V(86)

Teknik Özellikler

Contact Pattern

RECTANGULAR

Contact Gender

FEMALE

Ambalaj

Tape & Reel (TR)

Stack Height

3mm

Orientation

Straight

Insulator Color

BEIGE

Seri

DF12

Pcb Contact Row Spacing

3.6068 mm

ECCN Kodu

EAR99

JESD-609 Kodu

e4

Contact Finish Thickness

8.00μin 0.203μm

Pozisyon Sayısı

40

Özellikler

Solder Retention

Durability

50 Cycles

Mil Conformance

NO

Montaj Tipi

Surface Mount

Number Of Conductors

ONE

Reliability

COMMERCIAL

Mixed Contacts

NO

REACH Uyumluluk Kodu

unknown

Operating Temperature Min

-45°C

Rated Current Signal

0.3A

Insulation Materials

POLYAMIDE

Filter Feature

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fabrika Tedarik Süresi

10 Weeks

Akım Değeri

300mA

Reference Standard

UL

Nominal Gerilim

50V

Option

GENERAL PURPOSE

Montaj

Surface Mount

Number Of Pcb Rows

2

Sıra Sayısı

2

Pcb Contact Pattern

RECTANGULAR

Contact Materials

Copper

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Pitch

0.020 0.50mm

Din Conformance

NO

Ul Flammability Code

94V-0

RoHS Durumu

RoHS Compliant
