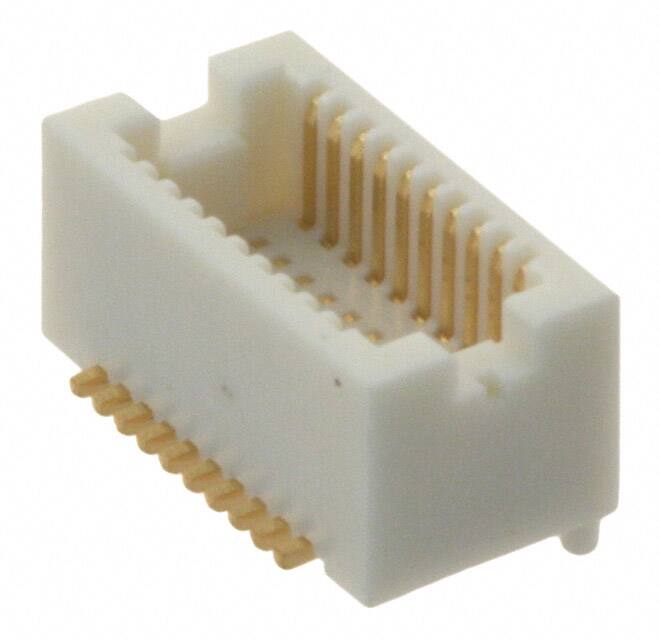

DF12(4.0)-60DP-0.5V(86)

Teknik Özellikler

Iec Conformance

NO

Filter Feature

NO

Bodyshell Style

RECEPTACLE

Total Number Of Contacts

60

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

4mm

Mil Conformance

NO

Montaj Tipi

Surface Mount

Body Breadth

0.15 inch

Number Of Pcb Rows

2

Pozisyon Sayısı

60

Operating Temperature Min

-40°C

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Mixed Contacts

NO

Board Mounting Option

PEG

Ambalaj

Tape & Reel (TR)

Height Above Board

0.130 3.30mm

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Contact Pattern

RECTANGULAR

Kurşunsuz

Lead Free

Contact Resistance

50mOhm

Number Of Conductors

ONE

Reliability

COMMERCIAL

Rated Current Signal

0.3A

Pitch

0.020 0.50mm

JESD-609 Kodu

e4

Body Length Or Diameter

0.709 inch

Dielectric Withstanding Voltage

150VAC V

Ul Flammability Code

94V-0

Contact Finish Thickness

8.00μin 0.203μm

RoHS Durumu

RoHS Compliant

Lead Pitch

500μm

Seri

DF12

Housing Material

Plastic

Body Depth

0.13 inch

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR
