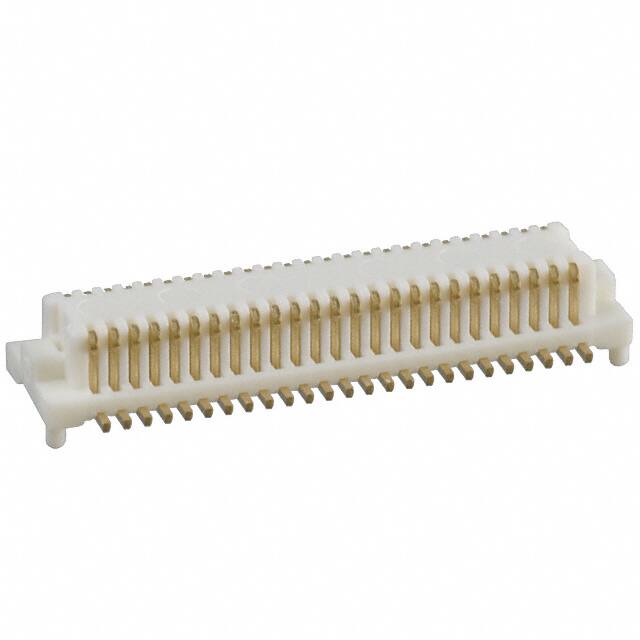

DF12(3.0)-36DS-0.5V(86)

Teknik Özellikler

Pcb Contact Row Spacing

3.6068 mm

Connector Type

Receptacle, Center Strip Contacts

Option

GENERAL PURPOSE

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Insulation Resistance

500000000Ohm

Stack Height

3mm

Housing Color

Beige

Min. Çalışma Sıcaklığı

-45°C

Maks. Çalışma Sıcaklığı

125°C

Contact Materials

Copper

Sıra Sayısı

2

Contact Finish

Gold

Özellikler

Board Guide, Solder Retention

Gender

Female

Max Voltage Rating Ac

50V

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Pitch

0.020 0.50mm

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

150VAC V

Reliability

COMMERCIAL

Rated Current Signal

0.3A

Number Of Conductors

ONE

Radyasyon Dayanımı

No

Housing Material

Polyamide

RoHS Durumu

RoHS Compliant

Seri

DF12

Lead Pitch

500μm

Contact Finish Thickness

8.00μin 0.203μm

Din Conformance

NO

Fabrika Tedarik Süresi

12 Weeks

Contact Pattern

RECTANGULAR

Nominal Gerilim

50V

ECCN Kodu

EAR99

Height Above Board

0.087 2.20mm

Mixed Contacts

NO

Terminal

Solder

Ambalaj

Tape & Reel (TR)
