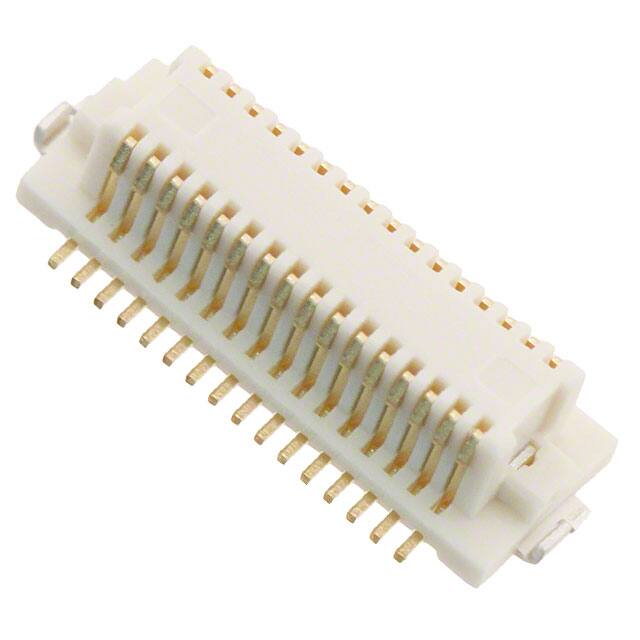

DF12(3.0)-32DS-0.5V(86)

Teknik Özellikler

RoHS Durumu

RoHS Compliant

Lead Pitch

500μm

Seri

DF12

Housing Material

Polyamide

HTS Kodu

8536.69.40.40

Contact Finish Thickness

8.00μin 0.203μm

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

150VAC V

Ul Flammability Code

94V-0

Montaj

Surface Mount

Pitch

0.020 0.50mm

Reach Svhc

Unknown

Flammability Rating

UL94 V-0

Number Of Conductors

ONE

Reliability

COMMERCIAL

Rated Current Signal

0.3A

Housing Color

Beige

Stack Height

3mm

Insulation Resistance

500000000Ohm

Gender

Receptacle

Contact Finish

Gold

Sıra Sayısı

2

Contact Materials

Copper

Özellikler

Board Guide, Solder Retention

Connector Type

Receptacle, Center Strip Contacts

Pcb Contact Row Spacing

3.6068 mm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Option

GENERAL PURPOSE

Durability

50 Cycles

Akım Değeri

300mA

Operating Temperature Min

-45°C

Reference Standard

UL

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Pozisyon Sayısı

32

Mil Conformance

NO

Montaj Tipi

Surface Mount

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Total Number Of Contacts

32
