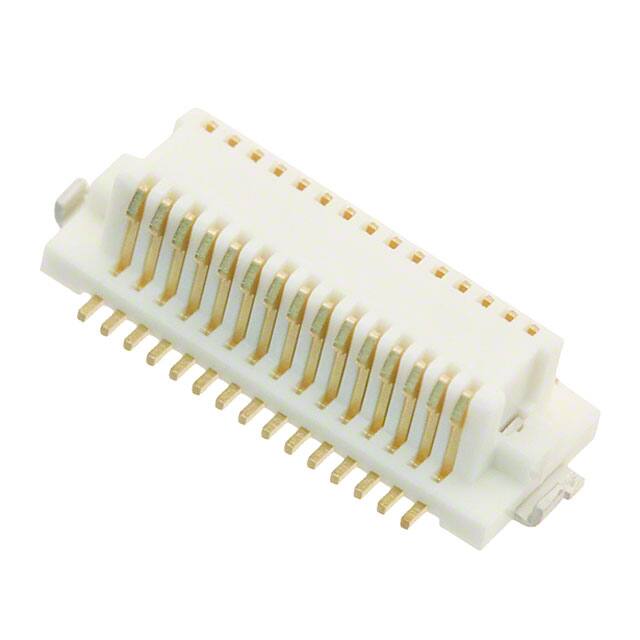

DF12(3.0)-30DS-0.5V(86)

Teknik Özellikler

Seri

DF12

RoHS Durumu

RoHS Compliant

HTS Kodu

8536.69.40.40

Contact Finish Thickness

8.00μin 0.203μm

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

150VAC V

JESD-609 Kodu

e4

Pitch

0.020 0.50mm

Rated Current Signal

0.3A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Insulation Resistance

500MOhm

Gender

Receptacle

Genişlik

10.5mm

Özellikler

Board Guide, Solder Retention

Contact Finish

Gold

Sıra Sayısı

2

Contact Materials

NOT SPECIFIED

REACH Uyumluluk Kodu

unknown

Connector Type

Receptacle, Center Strip Contacts

Pcb Contact Row Spacing

3.6068 mm

Voltage Rated Ac

50V

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Option

GENERAL PURPOSE

Akım Değeri

300mA

Durability

50 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Operating Temperature Min

-45°C

Pozisyon Sayısı

30

Number Of Pcb Rows

2

Montaj Tipi

Surface Mount

Mil Conformance

NO

Stack Height Mating

3mm

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Insulation Materials

POLYAMIDE

Total Number Of Contacts

30

Filter Feature

NO

Iec Conformance

NO
