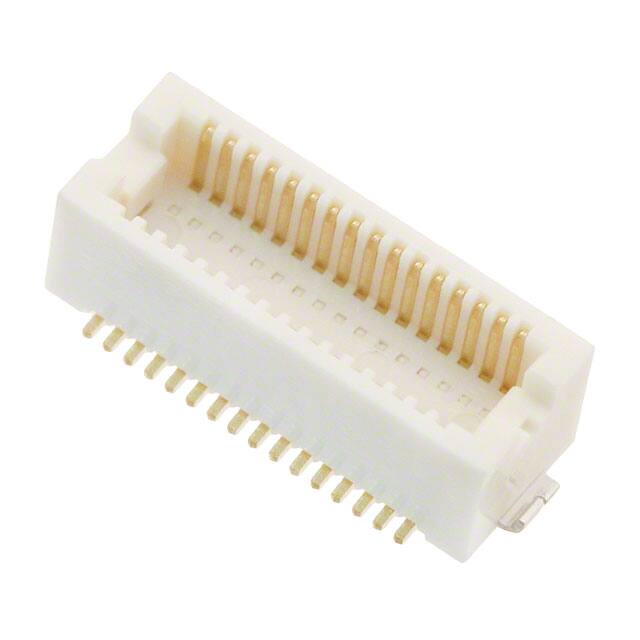

DF12(3.0)-20DP-0.5V(86)

Teknik Özellikler

Mating Information

MULTIPLE MATING PARTS AVAILABLE

Stack Height Mating

3mm

Ul Flammability Code

94V-0

Pitch

0.020 0.50mm

Total Number Of Contacts

20

Iec Conformance

NO

Filter Feature

NO

RoHS Durumu

RoHS Compliant

Lead Pitch

500μm

Seri

DF12

Akım Değeri

300mA

Housing Material

Plastic

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish Thickness

8.00μin 0.203μm

HTS Kodu

8536.69.40.40

Pozisyon Sayısı

20

Montaj Tipi

Surface Mount

Mil Conformance

NO

Connector Type

Header, Outer Shroud Contacts

REACH Uyumluluk Kodu

unknown

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Mixed Contacts

NO

Ambalaj

Tape & Reel (TR)

ECCN Kodu

EAR99

Height Above Board

0.091 2.30mm

Voltage Rated Ac

50V

Parça Durumu

Active

Option

GENERAL PURPOSE

Housing Color

Beige

Contact Resistance

50mOhm

Insulation Resistance

500MOhm

Gender

Male

Sıra Sayısı

2

Contact Materials

BRASS

Contact Finish

Gold

Genişlik

8mm

Kurşunsuz

Lead Free

Özellikler

Board Guide, Solder Retention
