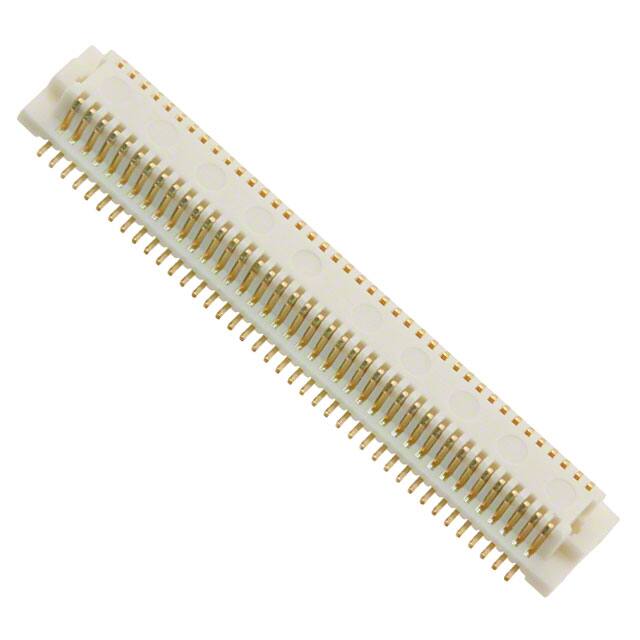

DF12(3.0)-10DS-0.5V(86)

Teknik Özellikler

Özellikler

Board Guide, Solder Retention

Contact Finish

Gold

Contact Materials

PHOSPHOR COPPER

Sıra Sayısı

2

Gender

Receptacle

Insulation Resistance

500000000Ohm

Contact Resistance

50mOhm

Option

GENERAL PURPOSE

Insulator Color

BEIGE

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Height Above Board

0.087 2.20mm

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Pcb Contact Row Spacing

3.6068 mm

Mounting Option1

LOCKING

Din Conformance

NO

Contact Pattern

RECTANGULAR

Connector Type

Receptacle, Center Strip Contacts

REACH Uyumluluk Kodu

unknown

Mil Conformance

NO

Montaj Tipi

Surface Mount

Number Of Pcb Rows

2

HTS Kodu

8536.69.40.40

Contact Finish Thickness

8.00μin 0.203μm

Pozisyon Sayısı

10

Reference Standard

UL

Operating Temperature Min

-45°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles

Seri

DF12

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Rated Current Signal

0.3A

Reliability

COMMERCIAL

Filter Feature

NO

Iec Conformance

NO

Pitch

0.020 0.50mm
