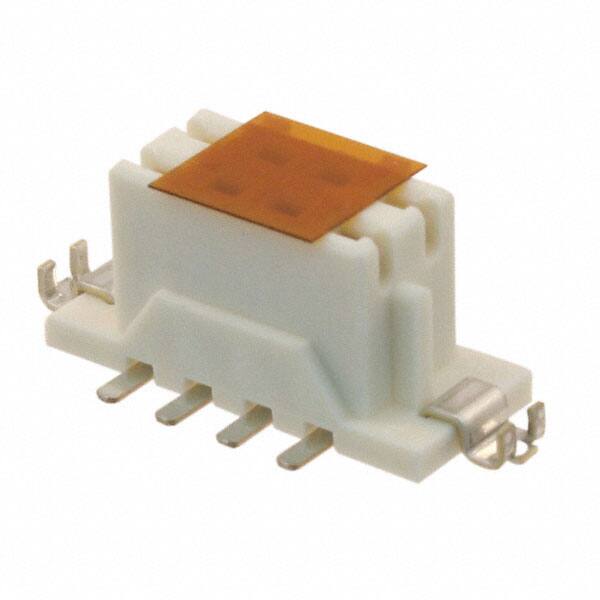

DF11Z-8DS-2V(22)

Teknik Özellikler

REACH Uyumluluk Kodu

unknown

Connector Type

Receptacle

Plating Thickness

39μin

Material Flammability Rating

UL94 V-0

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Fastening Type

Friction Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Contact Gender

Female

Row Spacing Mating

0.079 (2.00mm)

Insulation Resistance

1GOhm

Contact Finish Mating

Tin

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Özellikler

Board Guide, Solder Retention

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Body Length Or Diameter

0.61 inch

Montaj

Surface Mount

Applications

General Purpose

Reliability

COMMERCIAL

Number Of Conductors

ONE

Current Rating Amps

2A

Housing Material

Polyamide

RoHS Durumu

RoHS Compliant

Seri

DF11

Insulation Height

0.234 5.95mm

Polarization Key

POLARIZED HOUSING

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

250V

Number Of Positions Loaded

All

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Contact Shape

Square

Contact Resistance

30mOhm

Çalışma Sıcaklığı

-30°C~85°C

Stack Height Mating

7.55mm 8.2mm

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

8
