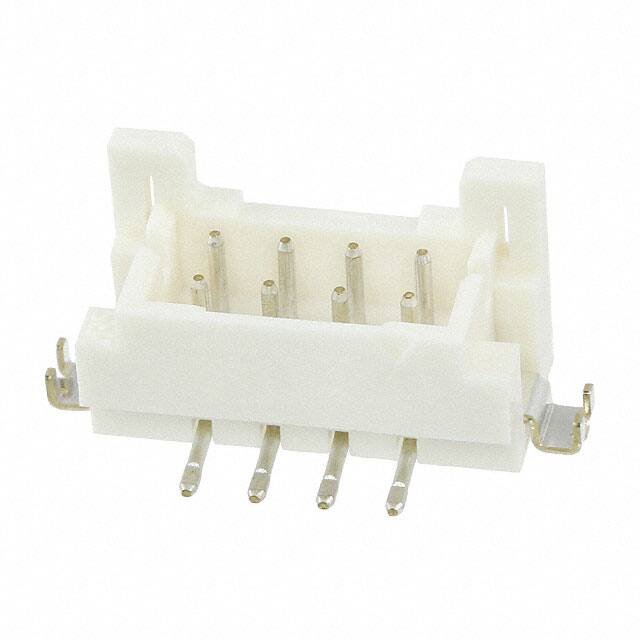

DF11Z-8DP-2V(27)

Teknik Özellikler

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Pcb Contact Row Spacing

6.1976 mm

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Plating Thickness

39μin

Connector Type

Header

Contact Finish Mating

Tin

Özellikler

Board Guide, Pick and Place, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

Insulation Resistance

1000000000Ohm

Reliability

COMMERCIAL

Number Of Conductors

ONE

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Ul Flammability Code

94V-0

Body Length Or Diameter

0.61 inch

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Current Rating Amps

2A

Seri

DF11

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Number Of Positions Loaded

All

Nominal Gerilim

250V

Terminal

Solder

Ambalaj

Tape & Reel (TR)

Mixed Contacts

NO

Polarization Key

POLARIZED HOUSING

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz Kodu

yes

Contact Shape

Circular
