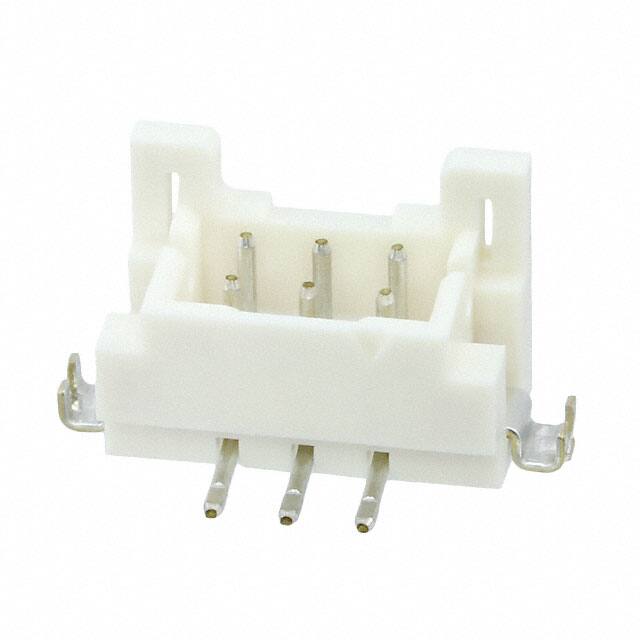

DF11Z-6DP-2V(27)

Teknik Özellikler

Çalışma Sıcaklığı

-30°C~85°C

Renk

Beige, Black

Contact Finish Mating

Tin

Contact Materials

Brass

Sıra Sayısı

2

Özellikler

Board Guide, Pick and Place, Solder Retention

Contact Shape

Circular

Contact Resistance

30mOhm

Insulation Resistance

1000000000Ohm

Nominal Gerilim

250V

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

Number Of Positions Loaded

All

Fastening Type

Detent Lock

Terminal

Solder

Contact Finish Thickness Mating

39.4μin 1.00μm

Ambalaj

Tape & Reel (TR)

Row Spacing Mating

0.079 (2.00mm)

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Connector Type

Header

Plating Thickness

39μin

Polarization Key

POLARIZED HOUSING

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

6

Number Of Pcb Rows

2

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Current Rating Amps

2A

RoHS Durumu

RoHS Compliant

Seri

DF11

Insulation Height

0.283 7.19mm

Durability

30 Cycles

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Reference Standard

UL, CSA

Mating Contact Pitch

0.079 inch

Insulation Color

Beige

Reliability

COMMERCIAL

Yayın Yılı

2010
