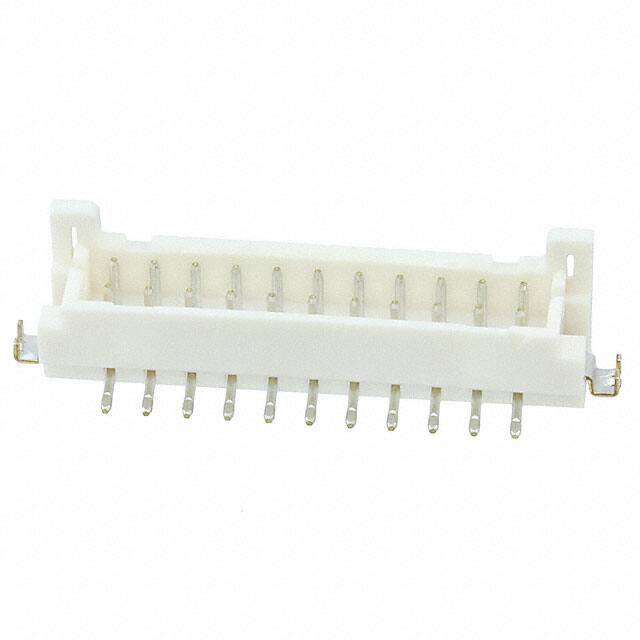

DF11Z-22DP-2V(27)

Teknik Özellikler

Number Of Pcb Rows

2

Pozisyon Sayısı

22

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Durability

30 Cycles

Reference Standard

UL, CSA

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Beige

Mating Contact Pitch

0.079 inch

Yayın Yılı

2010

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Total Number Of Contacts

22

Renk

Beige, Black

Çalışma Sıcaklığı

-30°C~85°C

Contact Resistance

30mOhm

Contact Shape

Circular

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Number Of Positions Loaded

All

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Insulation Height

0.283 7.19mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Current Rating Amps

2A

Number Of Conductors

ONE

Reliability

COMMERCIAL

Body Length Or Diameter

1.16 inch

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

Montaj

Surface Mount, Through Hole

Shrouding

Shrouded - 4 Wall

Gender

Male

Özellikler

Board Guide, Pick and Place, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

Contact Finish Mating

Tin
