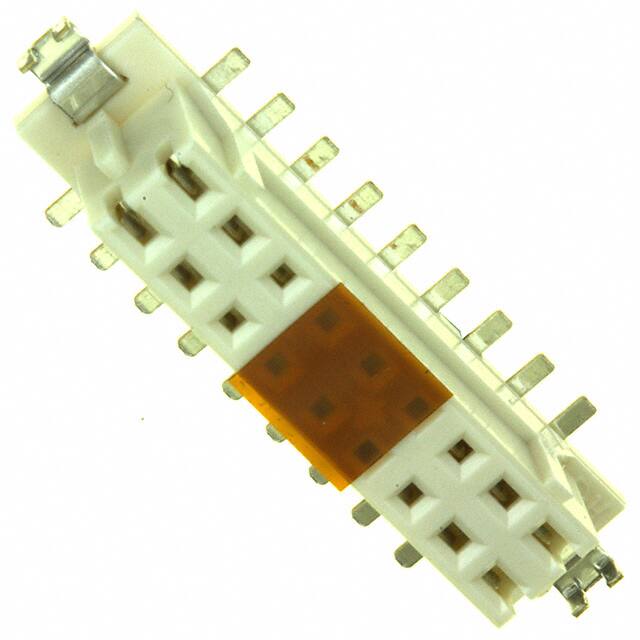

DF11Z-18DS-2V(22)

Teknik Özellikler

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Number Of Positions Loaded

All

Nominal Gerilim

250V

Contact Resistance

30mOhm

Contact Shape

Square

Çalışma Sıcaklığı

-30°C~85°C

Total Number Of Contacts

18

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55mm 8.2mm

Yayın Yılı

2010

Insulation Color

Beige

Mating Contact Pitch

0.079 inch

Reference Standard

UL

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

30 Cycles

Akım Değeri

1A

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Pozisyon Sayısı

18

Material Flammability Rating

UL94 V-0

Plating Thickness

39μin

Connector Type

Receptacle

REACH Uyumluluk Kodu

unknown

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Female

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Friction Lock

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Insulation Resistance

1000000000Ohm

Özellikler

Board Guide, Solder Retention

Sıra Sayısı

2

Contact Materials

Phosphor Bronze
