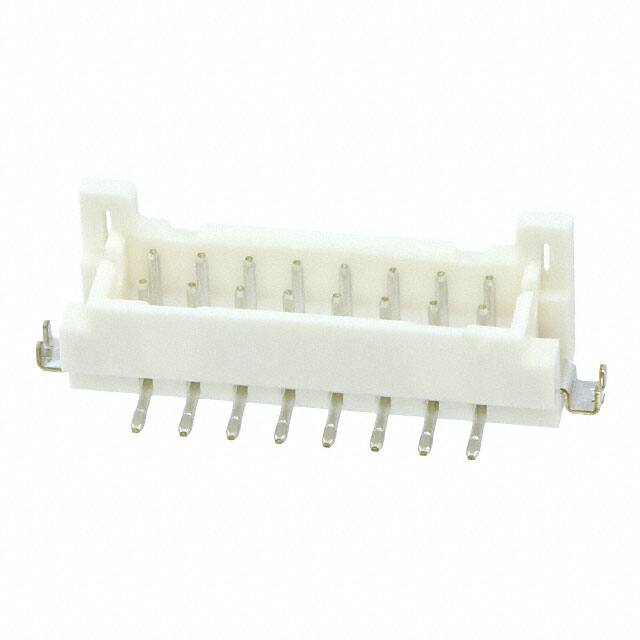

DF11Z-16DP-2V(27)

Teknik Özellikler

Insulation Resistance

1000000000Ohm

Sıra Sayısı

2

Contact Materials

Brass

Özellikler

Board Guide, Pick and Place, Solder Retention

Contact Finish Mating

Tin

Pcb Contact Row Spacing

6.1976 mm

Connector Type

Header

Plating Thickness

39μin

Material Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Insulation Height

0.283 7.19mm

Seri

DF11

Current Rating Amps

2A

HTS Kodu

8536.69.40.40

Montaj

Surface Mount, Through Hole

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e3

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Body Length Or Diameter

0.93 inch

Ul Flammability Code

94V-0

Number Of Conductors

ONE

Reliability

COMMERCIAL

Contact Resistance

30mOhm

Contact Shape

Circular

Çalışma Sıcaklığı

-30°C~85°C

Renk

Beige, Black

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Polarization Key

POLARIZED HOUSING

Mixed Contacts

NO

Terminal

Solder

Ambalaj

Tape & Reel (TR)
