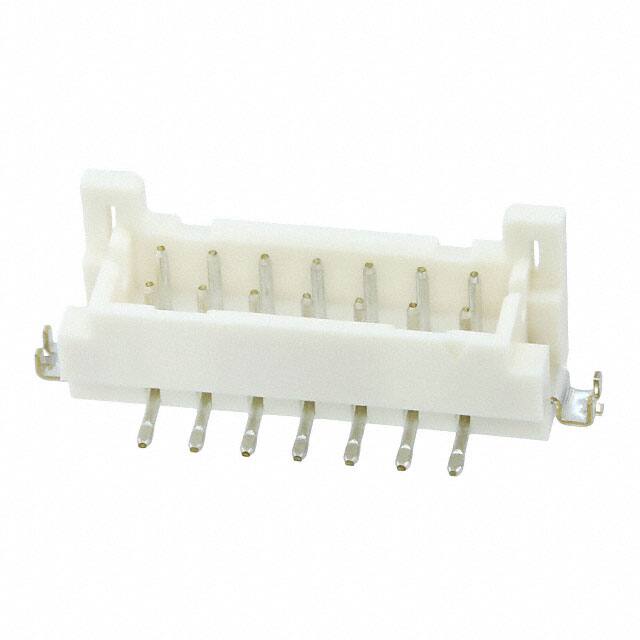

DF11Z-14DP-2V(27)

Teknik Özellikler

Yayın Yılı

2014

Insulation Color

Beige

Mating Contact Pitch

0.079 inch

Total Number Of Contacts

14

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Number Of Pcb Rows

2

Pozisyon Sayısı

14

Contact Type

Male Pin

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

30 Cycles

Ambalaj

Tape & Reel (TR)

Terminal

Solder

Nominal Gerilim

250V

Number Of Positions Loaded

All

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

POLARIZED HOUSING

Çalışma Sıcaklığı

-30°C~85°C

Renk

Beige, Black

Contact Resistance

30mOhm

Contact Shape

Circular

Number Of Conductors

ONE

Reliability

COMMERCIAL

Montaj

Surface Mount, Through Hole

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Body Length Or Diameter

0.85 inch

RoHS Durumu

RoHS Compliant

Seri

DF11

Insulation Height

0.283 7.19mm

Current Rating Amps

2A

Row Spacing Mating

0.079 (2.00mm)

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active
