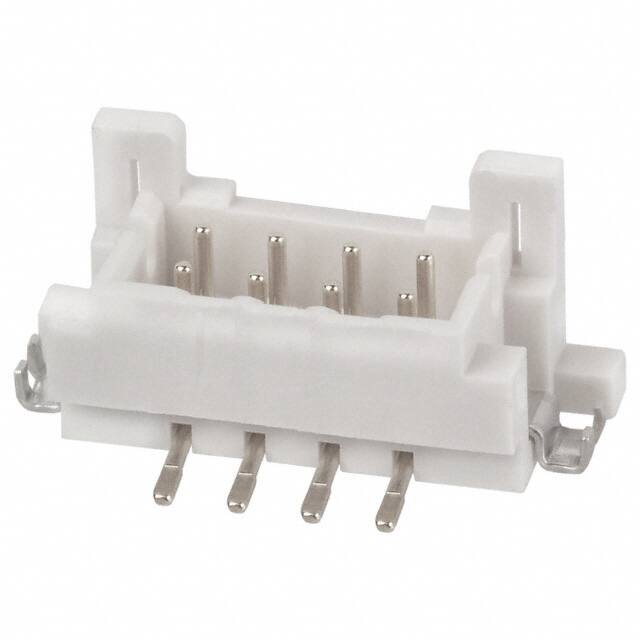

DF11GZ-8DP-2V(20)

Teknik Özellikler

Radyasyon Dayanımı

No

RoHS Durumu

RoHS Compliant

Lead Pitch

2mm

Seri

DF11

Insulation Height

0.283 7.19mm

Housing Material

Polyamide

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Reach Svhc

No SVHC

JESD-609 Kodu

e3

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Sıra Sayısı

2

Contact Materials

Brass

Özellikler

Board Guide, Solder Retention

Contact Finish Mating

Tin

Housing Color

Beige

Contact Gender

Male

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Fastening Type

Detent Lock

Contact Finish Thickness Mating

39.4μin 1.00μm

Parça Durumu

Active

Material Flammability Rating

UL94 V-0

Connector Type

Header

Montaj Tipi

Surface Mount

Mil Conformance

NO

Style

Board to Board or Cable

Max Current Rating

2A

Pozisyon Sayısı

8

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

6.2mm

Akım Değeri

2A

Yayın Yılı

2008

Iec Conformance

NO

Filter Feature

NO

Total Number Of Contacts

8

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm
