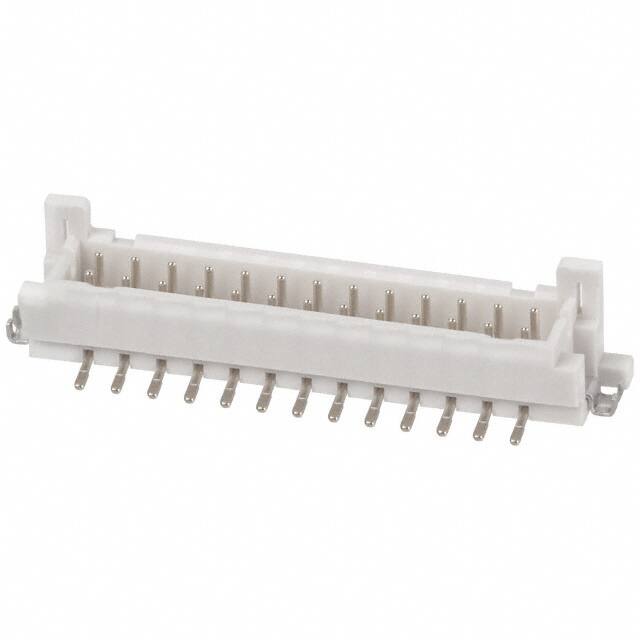

DF11GZ-26DP-2V(20)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Housing Material

Plastic

Insulation Height

0.283 7.19mm

Seri

DF11

Lead Pitch

2mm

RoHS Durumu

RoHS Compliant

Ul Flammability Code

94V-0

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Gender

Male

Contact Finish Mating

Tin

Özellikler

Board Guide, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

Housing Color

Beige

Parça Durumu

Active

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

REACH Uyumluluk Kodu

unknown

Connector Type

Header

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

26

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Mil Conformance

NO

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Filter Feature

NO

Iec Conformance

NO

Yayın Yılı

2010

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

26

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz

Lead Free
