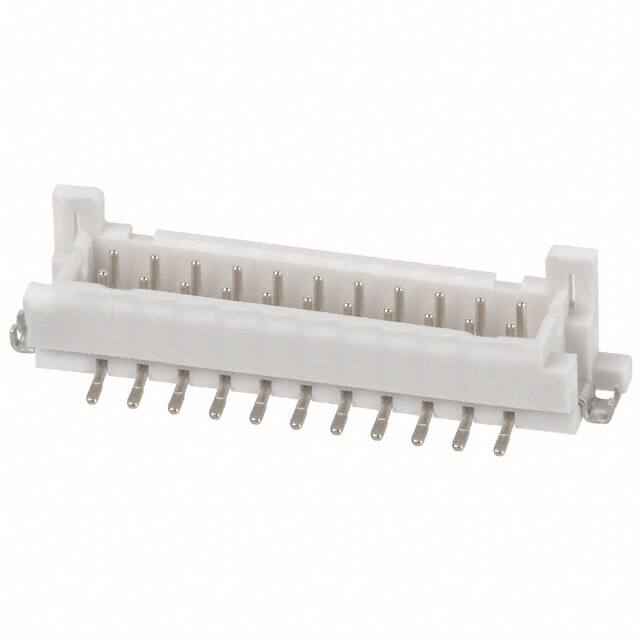

DF11GZ-22DP-2V(20)

Teknik Özellikler

Montaj

Surface Mount

Pitch

2mm

Shrouding

Shrouded - 4 Wall

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Yayın Yılı

2010

Insulation Color

Beige

Contact Plating

Tin

Contact Type

Male Pin

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Contact Finish Post

Tin

Insulation Height

0.283 7.19mm

Lead Pitch

2mm

Seri

DF11

Akım Değeri

2A

Current Rating Amps

2A

Housing Material

Plastic

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Number Of Contacts

22

Pozisyon Sayısı

22

Fabrika Tedarik Süresi

10 Weeks

Connector Type

Header

Material Flammability Rating

UL94 V-0

Row Spacing Mating

0.079 (2.00mm)

Fastening Type

Detent Lock

Ambalaj

Tube

Contact Finish Thickness Mating

39.4μin 1.00μm

Terminal

Solder

Nominal Gerilim

250V

Number Of Positions Loaded

All

Parça Durumu

Active

Housing Color

Beige

Contact Shape

Circular

Sıra Sayısı

2

Contact Materials

Brass

Özellikler

Board Guide, Solder Retention

Kurşunsuz

Lead Free
