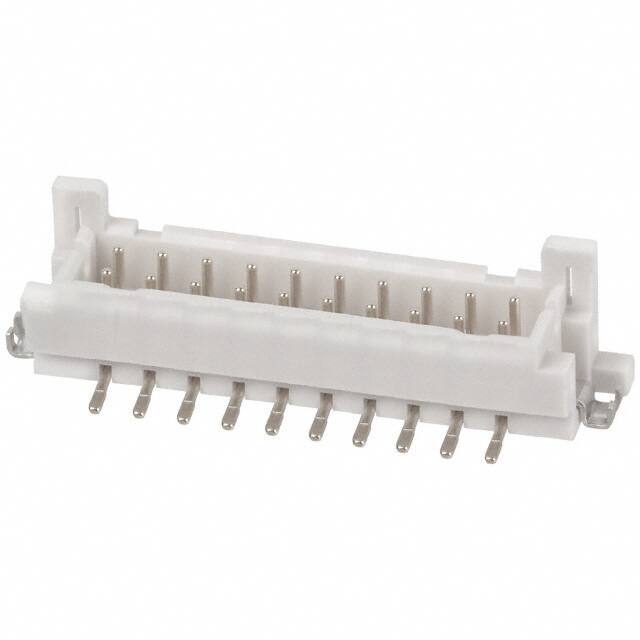

DF11GZ-20DP-2V(20)

Teknik Özellikler

Connector Type

Header

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Housing Color

Beige

Gender

Male

Contact Finish Mating

Tin

Özellikler

Board Guide, Solder Retention

Contact Materials

Brass

Sıra Sayısı

2

Ul Flammability Code

94V-0

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Housing Material

Polyamide

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

HTS Kodu

8536.69.40.40

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Nominal Gerilim

250V

ECCN Kodu

EAR99

Terminal

Solder

Ambalaj

Tube

Mixed Contacts

NO

Contact Shape

Circular

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Uzunluk

27.5mm

Çalışma Sıcaklığı

-30°C~85°C

Orientation

Straight

Kurşunsuz

Lead Free
