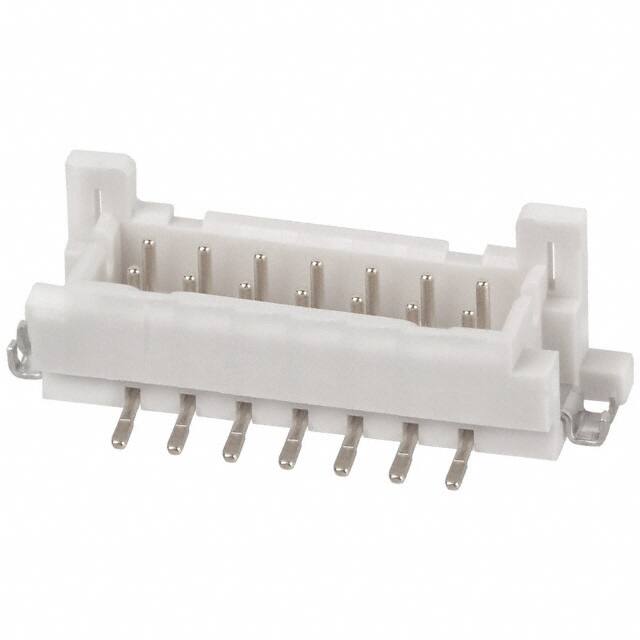

DF11GZ-14DP-2V(20)

Teknik Özellikler

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Parça Durumu

Active

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Connector Type

Header

Material Flammability Rating

UL94 V-0

Gender

Male

Özellikler

Board Guide, Solder Retention

Contact Materials

Brass

Sıra Sayısı

2

Contact Finish Mating

Tin

Housing Color

Beige

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Ul Flammability Code

94V-0

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Radyasyon Dayanımı

No

Terminal

Solder

Ambalaj

Tube

Mixed Contacts

NO

Number Of Positions Loaded

All

Nominal Gerilim

250V

Fabrika Tedarik Süresi

10 Weeks

Din Conformance

NO

Uzunluk

21.5mm

Orientation

Straight

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-30°C~85°C

Contact Resistance

30mOhm

Contact Shape

Circular

Kurşunsuz Kodu

yes

Filter Feature

NO

Iec Conformance

NO
