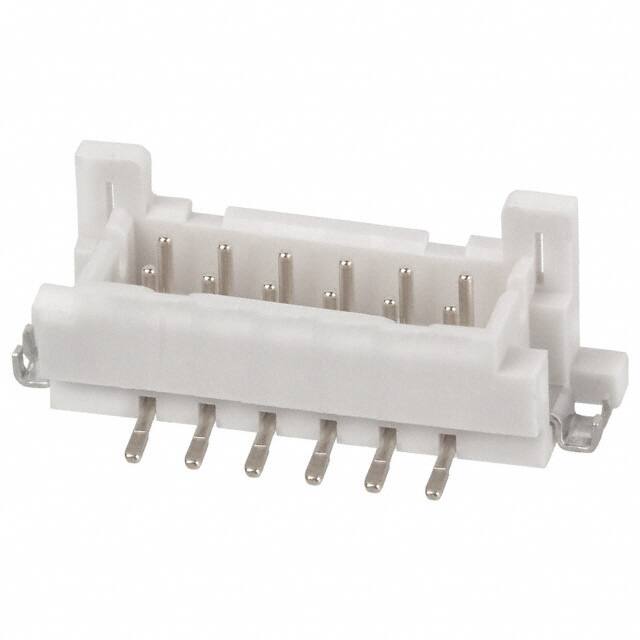

DF11GZ-12DP-2V(20)

Teknik Özellikler

Ul Flammability Code

94V-0

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Housing Material

Plastic

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

HTS Kodu

8536.69.40.40

Connector Type

Header

Material Flammability Rating

UL94 V-0

Parça Durumu

Active

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Housing Color

Beige

Gender

Male

Contact Finish Mating

Tin

Özellikler

Board Guide, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

12

Filter Feature

NO

Iec Conformance

NO

Yayın Yılı

2010

Akım Değeri

2A

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Pozisyon Sayısı

12

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Mil Conformance

NO

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks
