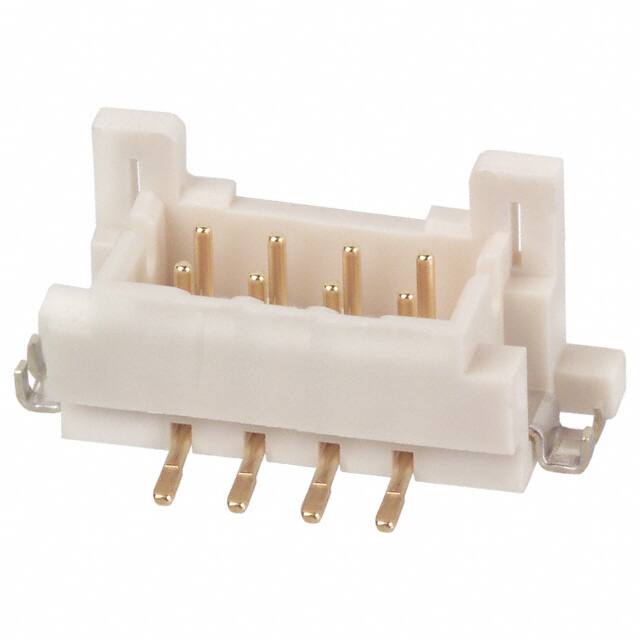

DF11G-8DP-2V(50)

Teknik Özellikler

Housing Material

Plastic

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.283 7.19mm

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e4

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Gender

Male

Contact Finish Mating

Gold

Özellikler

Board Guide, Solder Retention

Genişlik

6.2mm

Contact Materials

Brass

Sıra Sayısı

2

Housing Color

Beige

Insulation Resistance

1000000000Ohm

Parça Durumu

Active

Yükseklik

7.2mm

Pcb Contact Pattern

RECTANGULAR

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Connector Type

Header

Material Flammability Rating

UL94 V-0

Pozisyon Sayısı

8

Number Of Pcb Rows

2

Style

Board to Board or Cable

Max Current Rating

2A

Mil Conformance

NO

Montaj Tipi

Surface Mount

Akım Değeri

2A

Durability

50 Cycles

Depth

6.2mm

Nem Hassasiyeti (MSL)

1 (Unlimited)
