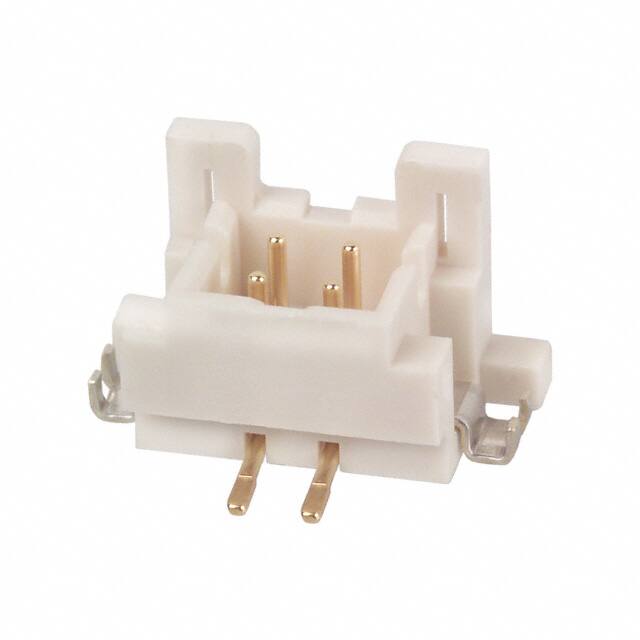

DF11G-4DP-2V(50)

Teknik Özellikler

Din Conformance

NO

Polarization Key

GUIDE SLOT(S)

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

250V

Number Of Positions Loaded

All

Mixed Contacts

NO

Terminal

Solder

Ambalaj

Tube

Kurşunsuz Kodu

yes

Contact Shape

Circular

Contact Resistance

30mOhm

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz

Lead Free

Orientation

Straight

Uzunluk

11.5mm

Total Number Of Contacts

4

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Yayın Yılı

2010

Mating Contact Pitch

0.079 inch

Iec Conformance

NO

Filter Feature

NO

Depth

6.2mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Male Pin

Reference Standard

UL, CSA

Akım Değeri

2A

Durability

50 Cycles

Style

Board to Board or Cable

Max Current Rating

2A

Mil Conformance

NO

Montaj Tipi

Surface Mount

Pozisyon Sayısı

4

Number Of Pcb Rows

2

Material Flammability Rating

UL94 V-0

Connector Type

Header

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Pcb Contact Pattern

RECTANGULAR

Parça Durumu

Active
