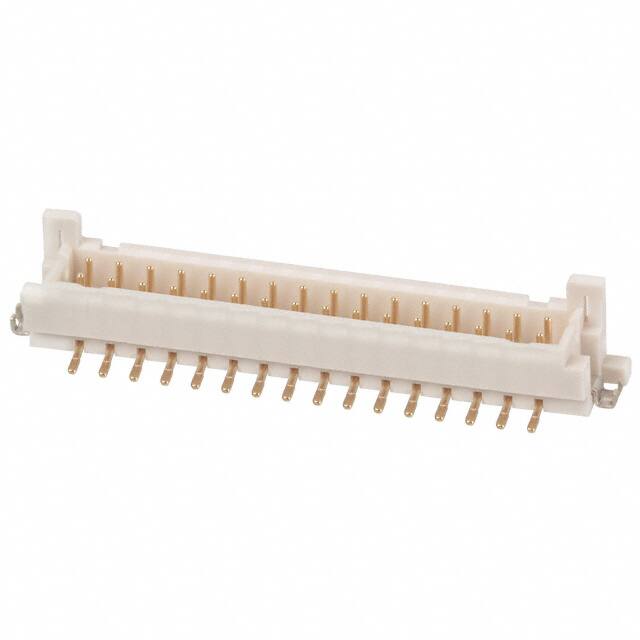

DF11G-32DP-2V(50)

Teknik Özellikler

Total Number Of Contacts

32

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

8.2mm 8.45mm 9.55mm

Yayın Yılı

2010

Iec Conformance

NO

Filter Feature

NO

Mating Contact Pitch

0.079 inch

Contact Type

Male Pin

Reference Standard

UL, CSA

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

6.2mm

Durability

50 Cycles

Akım Değeri

2A

Montaj Tipi

Surface Mount

Mil Conformance

NO

Max Current Rating

2A

Style

Board to Board or Cable

Number Of Pcb Rows

2

Pozisyon Sayısı

32

Fabrika Tedarik Süresi

10 Weeks

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Mixed Contacts

NO

Ambalaj

Tube

Terminal

Solder

Nominal Gerilim

250V

Number Of Positions Loaded

All

Kurşunsuz Kodu

yes

Contact Resistance

30mOhm

Contact Shape

Circular

Orientation

Straight

Kurşunsuz

Lead Free

Çalışma Sıcaklığı

-30°C~85°C

Uzunluk

39.5mm

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

JESD-609 Kodu

e4

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Number Of Conductors

ONE
