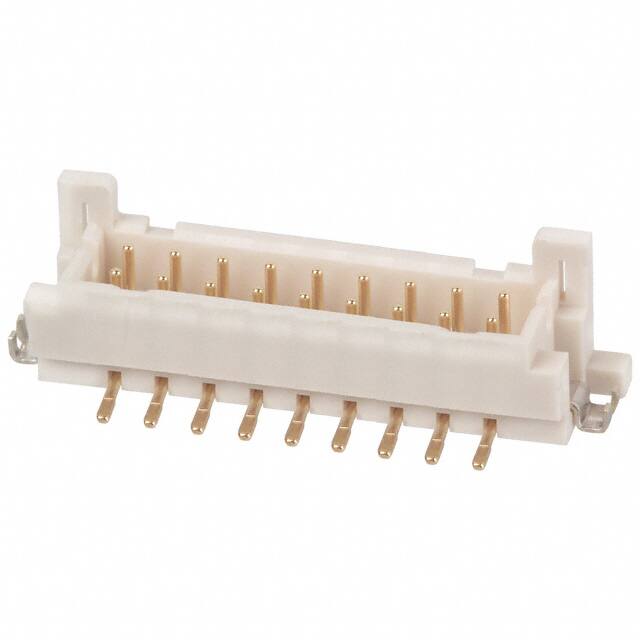

DF11G-18DP-2V(50)

Teknik Özellikler

Gender

Male

Contact Finish Mating

Gold

Sıra Sayısı

2

Contact Materials

Brass

Özellikler

Board Guide, Solder Retention

Housing Color

Beige

Insulation Resistance

1000000000Ohm

Pcb Contact Pattern

RECTANGULAR

Yükseklik

7.2mm

Parça Durumu

Active

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

REACH Uyumluluk Kodu

unknown

Material Flammability Rating

UL94 V-0

Connector Type

Header

Housing Material

Polyamide

RoHS Durumu

RoHS Compliant

Insulation Height

0.283 7.19mm

Lead Pitch

2mm

Seri

DF11

Withdrawl Forcemin

.3058 N

Reliability

COMMERCIAL

Rated Current Signal

2A

Number Of Conductors

ONE

JESD-609 Kodu

e4

Pitch Mating

0.079 2.00mm

Dielectric Withstanding Voltage

650VAC V

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Uzunluk

25.5mm

Çalışma Sıcaklığı

-30°C~85°C

Kurşunsuz

Lead Free

Orientation

Straight

Contact Shape

Circular

Contact Resistance

30mOhm

Kurşunsuz Kodu

yes

Nominal Gerilim

250V

Number Of Positions Loaded

All

Mixed Contacts

NO
