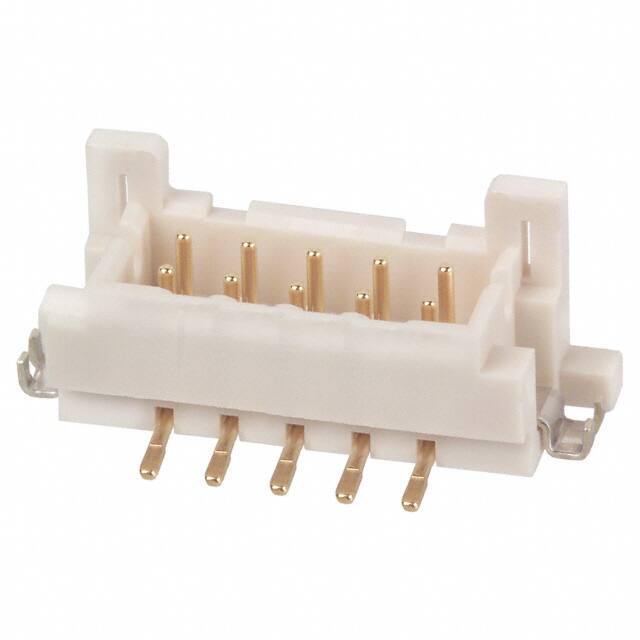

DF11G-10DP-2V(50)

Teknik Özellikler

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Insulation Height

0.283 7.19mm

Lead Pitch

2mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Number Of Conductors

ONE

Rated Current Signal

2A

Reliability

COMMERCIAL

Montaj

Surface Mount

Shrouding

Shrouded - 4 Wall

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e4

Özellikler

Board Guide, Solder Retention

Contact Materials

Brass

Sıra Sayısı

2

Contact Finish Mating

Gold

Gender

Male

Housing Color

Beige

Row Spacing Mating

0.079 (2.00mm)

Option

GENERAL PURPOSE

Fastening Type

Detent Lock

Parça Durumu

Active

Yükseklik

7.2mm

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Connector Type

Header

Mil Conformance

NO

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Max Current Rating

2A

Number Of Pcb Rows

2

Pozisyon Sayısı

10

Reference Standard

UL, CSA

Contact Type

Male Pin

Depth

6.2mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

50 Cycles
