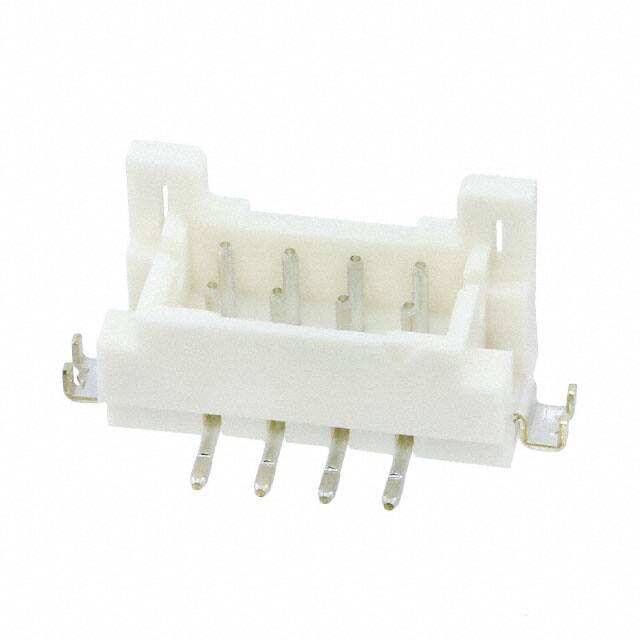

DF11CZ-8DP-2V(27)

Teknik Özellikler

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

Shrouding

Shrouded - 4 Wall

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Montaj

Surface Mount

Housing Material

Polyamide

Insulation Height

0.283 7.19mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Radyasyon Dayanımı

No

Parça Durumu

Active

Voltage Rated Ac

30V

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Male

Material Flammability Rating

UL94 V-0

Connector Type

Header

Contact Finish Mating

Tin

Özellikler

Pick and Place, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

Insulation Resistance

1GOhm

Mating Contact Pitch

0.079 inch

Filter Feature

NO

Insulation Color

Beige

Iec Conformance

NO

Yayın Yılı

2001

Stack Height Mating

8.2mm 8.45mm 9.55mm

Insulation Materials

Polyamide (PA), Nylon

Total Number Of Contacts

8

Pozisyon Sayısı

8

Number Of Pcb Rows

2
