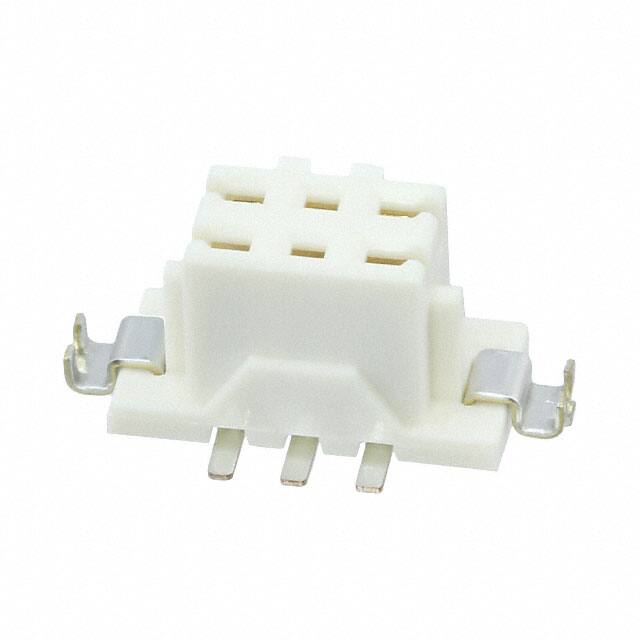

DF11CZ-6DS-2V(52)

Teknik Özellikler

Yayın Yılı

2010

Applications

General Purpose

Insulation Color

Beige

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Stack Height Mating

7.55mm 8.2mm

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.079 2.00mm

Style

Board to Board or Cable

Montaj Tipi

Surface Mount

Pozisyon Sayısı

6

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Type

Female Socket

Akım Değeri

2A

Housing Material

Polyamide

Contact Finish Post

Tin

RoHS Durumu

RoHS Compliant

Seri

DF11

Insulation Height

0.234 5.95mm

Contact Gender

Female

Row Spacing Mating

0.079 (2.00mm)

Nominal Gerilim

250V

ECCN Kodu

EAR99

Parça Durumu

Active

Number Of Positions Loaded

All

Fastening Type

Friction Lock

Terminal

Solder

Contact Finish Thickness Mating

8.00μin 0.203μm

Ambalaj

Tape & Reel (TR)

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

REACH Uyumluluk Kodu

unknown

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Çalışma Sıcaklığı

-30°C~85°C

Renk

Beige, Black

Contact Finish Mating

Gold

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Özellikler

Pick and Place, Solder Retention
