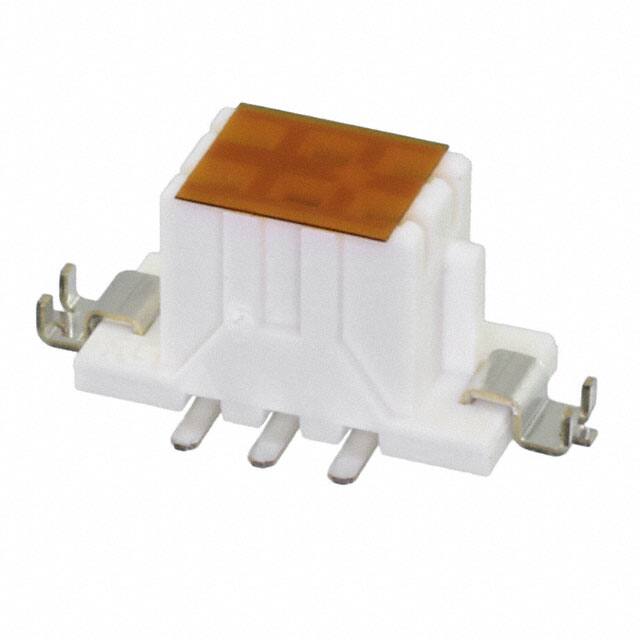

DF11CZ-6DS-2V(22)

Teknik Özellikler

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.234 5.95mm

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Applications

General Purpose

Pitch Mating

0.079 2.00mm

Ul Flammability Code

94V-0

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Özellikler

Pick and Place, Solder Retention

Sıra Sayısı

2

Contact Materials

Phosphor Bronze

Contact Finish Mating

Tin

Insulation Resistance

1GOhm

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Friction Lock

Voltage Rated Ac

30V

Parça Durumu

Active

Row Spacing Mating

0.079 (2.00mm)

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Pozisyon Sayısı

6

Montaj Tipi

Surface Mount

Mil Conformance

NO

Max Current Rating

2A

Style

Board to Board or Cable

Akım Değeri

2A

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Depth

5mm

Filter Feature

NO

Iec Conformance

NO

Insulation Color

Beige

Yayın Yılı

2010

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55mm 8.2mm

Total Number Of Contacts

6
