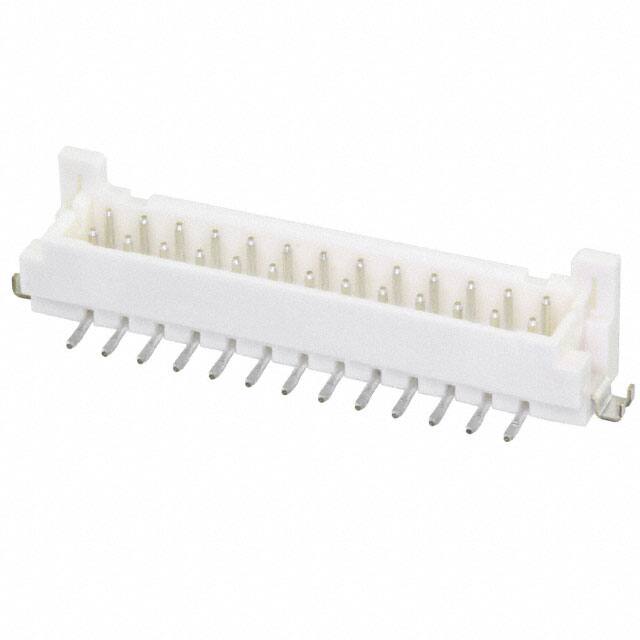

DF11CZ-26DP-2V(27)

Teknik Özellikler

Insulation Resistance

1GOhm

Contact Finish Mating

Tin

Özellikler

Pick and Place, Solder Retention

Sıra Sayısı

2

Contact Materials

Brass

REACH Uyumluluk Kodu

unknown

Connector Type

Header

Material Flammability Rating

UL94 V-0

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Male

Parça Durumu

Active

Voltage Rated Ac

30V

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Withdrawl Forcemin

.3058 N

Housing Material

Polyamide

Insulation Height

0.283 7.19mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Reach Svhc

No SVHC

Flammability Rating

UL94 V-0

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

650VAC V

JESD-609 Kodu

e3

Pitch Mating

0.079 2.00mm

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Kurşunsuz Kodu

yes

Contact Shape

Circular

Contact Resistance

30mOhm

Renk

Black

Çalışma Sıcaklığı

-30°C~85°C

Orientation

Straight

Uzunluk

33.5mm

Insulation

Insulated
