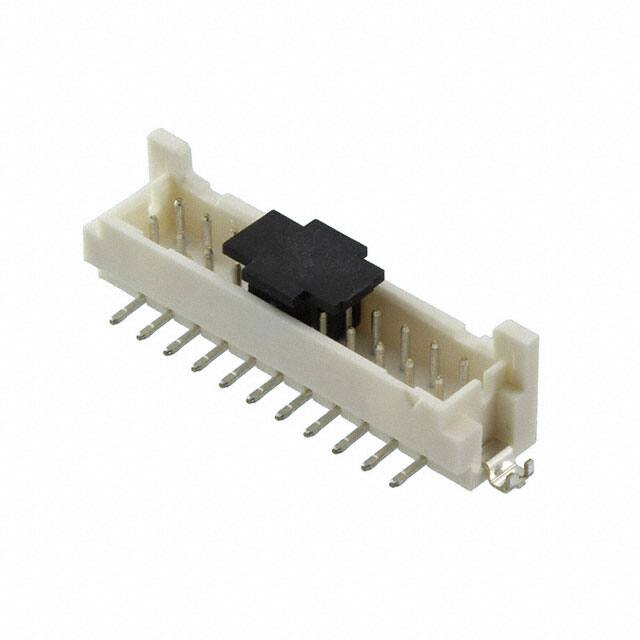

DF11CZ-22DP-2V(27)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Connector Type

Header

Option

GENERAL PURPOSE

Row Spacing Mating

0.079 (2.00mm)

Voltage Rated Ac

30V

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Detent Lock

Insulation Resistance

1GOhm

Contact Finish Mating

Tin

Özellikler

Pick and Place, Solder Retention

Contact Materials

Brass

Sıra Sayısı

2

Gender

Male

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Shrouding

Shrouded - 4 Wall

Montaj

Surface Mount

Ul Flammability Code

94V-0

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

JESD-609 Kodu

e3

Rated Current Signal

2A

Reliability

COMMERCIAL

Number Of Conductors

ONE

Withdrawl Forcemin

.3058 N

Radyasyon Dayanımı

No

Housing Material

Polyamide

Insulation Height

0.283 7.19mm

Lead Pitch

2mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Polarization Key

GUIDE SLOT(S)

Din Conformance

NO

Fabrika Tedarik Süresi

10 Weeks

Number Of Positions Loaded

All

Nominal Gerilim

250V

Ambalaj

Tape & Reel (TR)

Terminal

Solder
