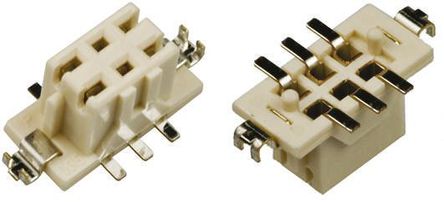

DF11CZ-20DS-2V(52)

Teknik Özellikler

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Terminal

Solder

Contact Finish Thickness Mating

8.00μin 0.203μm

Ambalaj

Tape & Reel (TR)

Fastening Type

Friction Lock

Parça Durumu

Active

Number Of Positions Loaded

All

Nominal Gerilim

250V

ECCN Kodu

EAR99

Row Spacing Mating

0.079 (2.00mm)

Contact Shape

Square

Özellikler

Pick and Place, Solder Retention

Orientation

Straight

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Renk

Black

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-30°C~85°C

JESD-609 Kodu

e4

Insulation Materials

Polyamide (PA), Nylon

Pitch Mating

0.079 2.00mm

Stack Height Mating

7.55mm 8.2mm

Montaj

Surface Mount

Insulation Color

Beige

Applications

General Purpose

Yayın Yılı

2008

Insulation Height

0.234 5.95mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Contact Finish Post

Tin

Akım Değeri

2A

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8536.69.40.40

Pozisyon Sayısı

20

Montaj Tipi

Surface Mount
