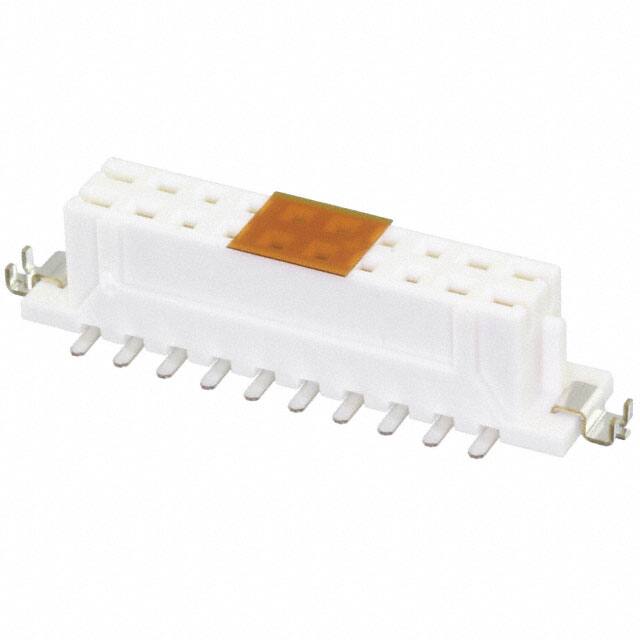

DF11CZ-20DS-2V(22)

Teknik Özellikler

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Reach Svhc

No SVHC

Applications

General Purpose

Number Of Conductors

ONE

Rated Current Signal

2A

Reliability

COMMERCIAL

Seri

DF11

Lead Pitch

2mm

Insulation Height

0.234 5.95mm

RoHS Durumu

RoHS Compliant

Housing Material

Polyamide

Withdrawl Forcemin

.3058 N

HTS Kodu

8536.69.40.40

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Friction Lock

Parça Durumu

Active

Voltage Rated Ac

30V

Pcb Contact Pattern

RECTANGULAR

Row Spacing Mating

0.079 (2.00mm)

Contact Gender

Female

Insulation Resistance

1GOhm

Özellikler

Pick and Place, Solder Retention

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Contact Finish Mating

Tin

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55mm 8.2mm

Total Number Of Contacts

20

Insulation Color

Beige

Mating Contact Pitch

0.079 inch

Yayın Yılı

2008

Durability

30 Cycles

Akım Değeri

2A

Reference Standard

UL, CSA
