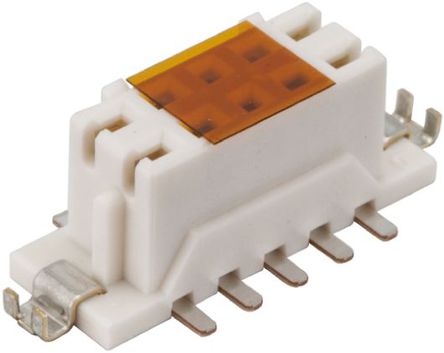

DF11CZ-14DS-2V(52)

Teknik Özellikler

Orientation

Straight

Özellikler

Pick and Place, Solder Retention

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Contact Finish Mating

Gold

Renk

Black

Çalışma Sıcaklığı

-30°C~85°C

Contact Shape

Square

Terminal

Solder

Contact Finish Thickness Mating

8.00μin 0.203μm

Ambalaj

Tape & Reel (TR)

Fastening Type

Friction Lock

Number Of Positions Loaded

All

Parça Durumu

Active

Nominal Gerilim

250V

Row Spacing Mating

0.079 (2.00mm)

Connector Type

Receptacle

Material Flammability Rating

UL94 V-0

Contact Finish Thickness Post

78.7μin 2.00μm

Fabrika Tedarik Süresi

10 Weeks

Pozisyon Sayısı

14

Number Of Contacts

14

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Insulation Height

0.234 5.95mm

Seri

DF11

RoHS Durumu

RoHS Compliant

Contact Finish Post

Tin

Akım Değeri

2A

Current Rating Amps

2A

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Insulation Color

Beige

Contact Plating

Gold

Applications

General Purpose

Yayın Yılı

2013

Pitch Mating

0.079 2.00mm

Insulation Materials

Polyamide (PA), Nylon

Stack Height Mating

7.55mm 8.2mm

Pitch

2.0066mm
