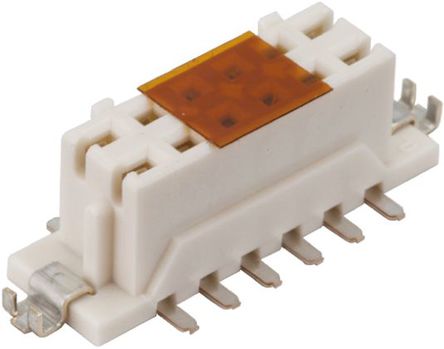

DF11CZ-14DS-2V(22)

Teknik Özellikler

HTS Kodu

8536.69.40.40

Withdrawl Forcemin

.3058 N

Seri

DF11

Insulation Height

0.234 5.95mm

RoHS Durumu

RoHS Compliant

Number Of Conductors

ONE

Rated Current Signal

2A

Reliability

COMMERCIAL

Applications

General Purpose

Montaj

Surface Mount

Dielectric Withstanding Voltage

650VAC V

Pitch Mating

0.079 2.00mm

Özellikler

Pick and Place, Solder Retention

Contact Materials

Phosphor Bronze

Sıra Sayısı

2

Contact Finish Mating

Tin

Insulation Resistance

1000000000Ohm

Row Spacing Mating

0.079 (2.00mm)

Contact Finish Thickness Mating

39.4μin 1.00μm

Fastening Type

Friction Lock

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Material Flammability Rating

UL94 V-0

Connector Type

Receptacle

REACH Uyumluluk Kodu

unknown

Montaj Tipi

Surface Mount

Style

Board to Board or Cable

Body Breadth

0.197 inch

Number Of Pcb Rows

2

Pozisyon Sayısı

14

Reference Standard

UL, CSA

Contact Type

Female Socket

Nem Hassasiyeti (MSL)

1 (Unlimited)

Durability

30 Cycles

Akım Değeri

2A

Yayın Yılı

2013

Insulation Color

Beige

Mating Contact Pitch

0.079 inch

Total Number Of Contacts

14

Insulation Materials

Polyamide (PA), Nylon
